DH48S-S Digital Repeat-Cycle Timer Relay (Twin Timer, 8-Pin)

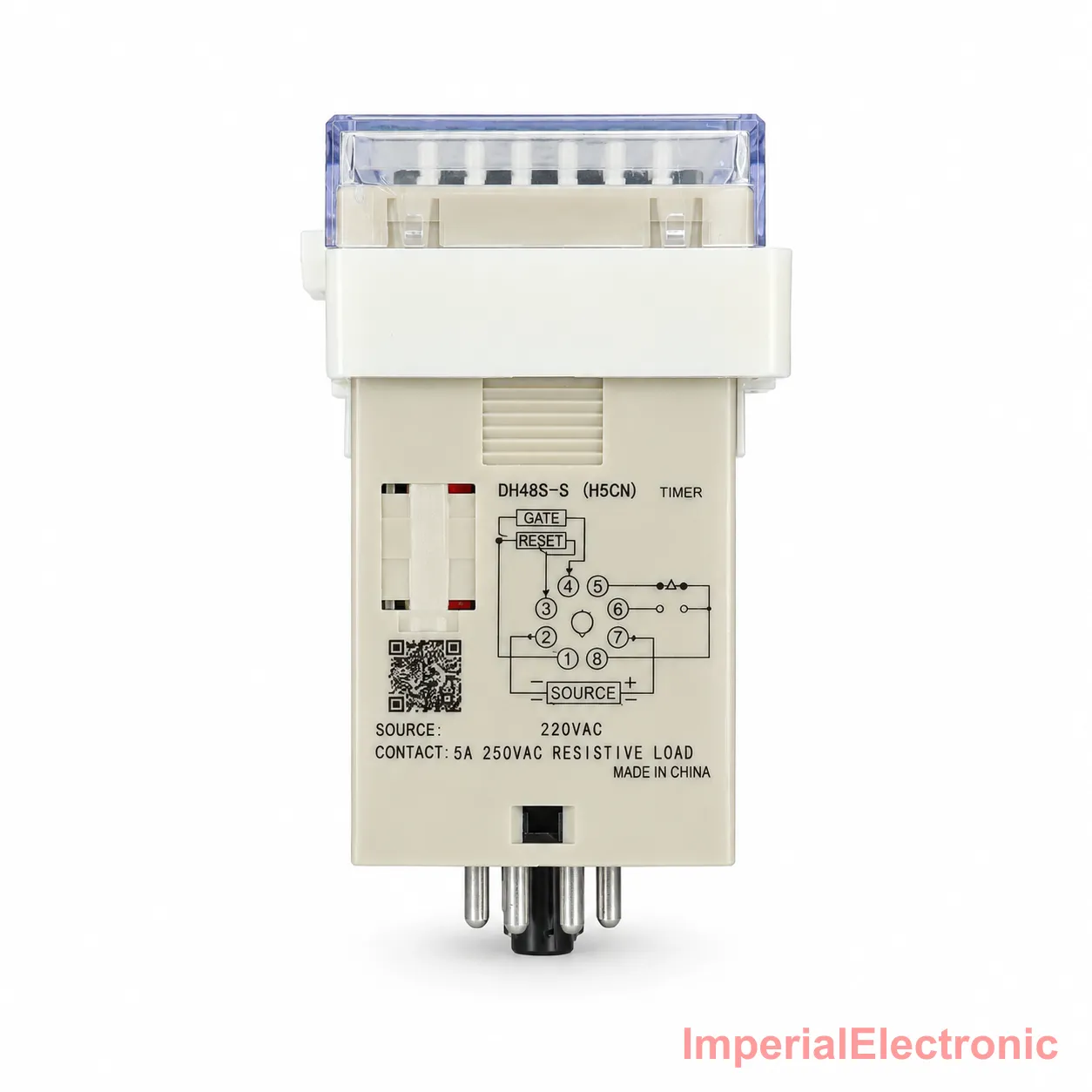

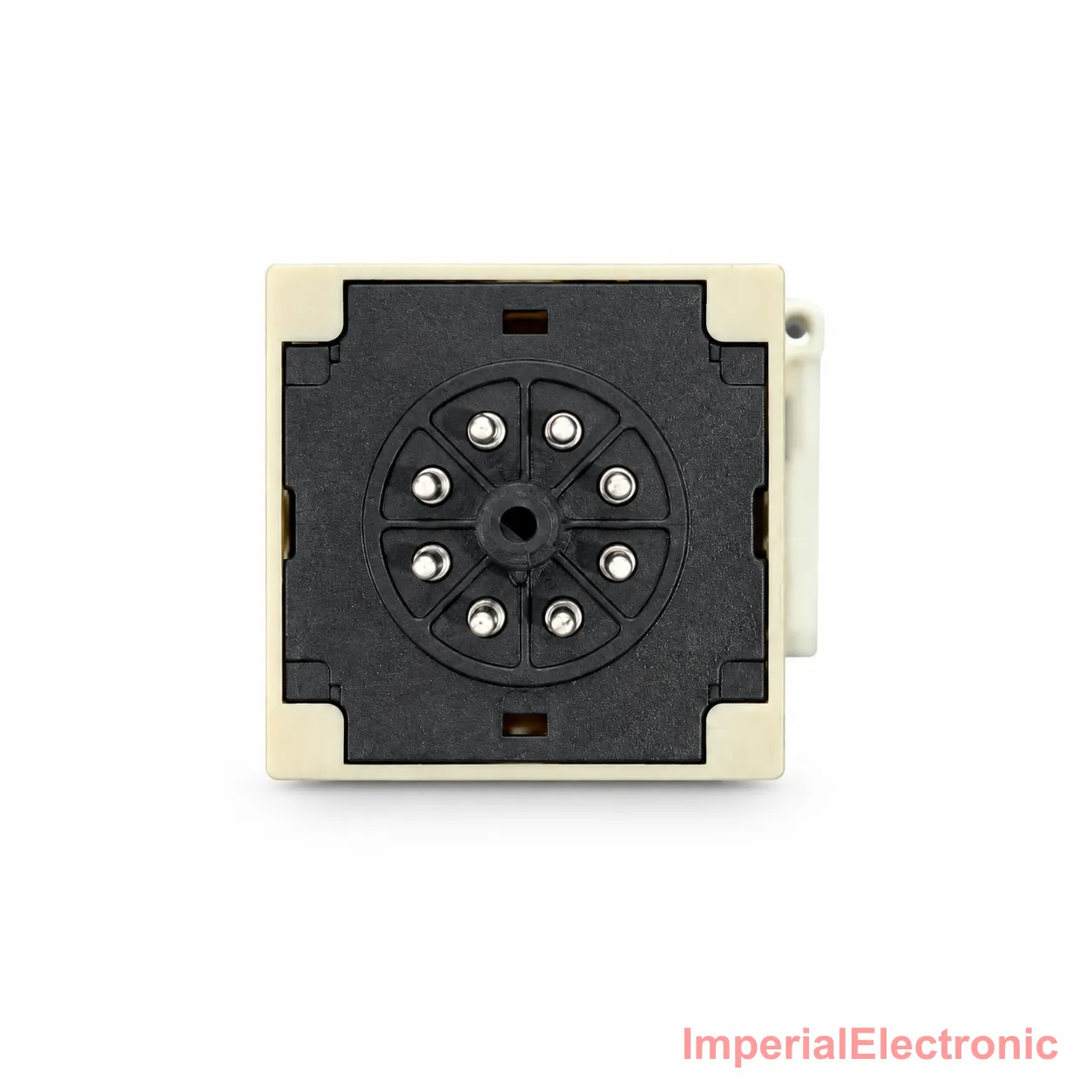

Where the DH48S-1Z gives a single delay, the DH48S-S is set up as a twin timer that free-runs between two independently adjustable stages — T1 and T2 — switching its output ON for the T1 duration and OFF for the T2 duration, then repeating that cycle for as long as it's powered. That makes it the natural fit for anything that needs to blink, pulse, or intermittently run on its own: warning lamp flashers, intermittent wiper or spray-pump control, and cyclic motor duty in agricultural and workshop equipment. The same 8-pin octal footprint, gate/reset terminals, and 5A 250V AC contact as the rest of the DH48S range mean it drops into an existing socket without rewiring the panel. It's built for repeat-cycle lighting and signalling circuits, intermittent pump and motor control, and any automation task that needs a reliable, adjustable ON/OFF rhythm rather than a one-time delay.
