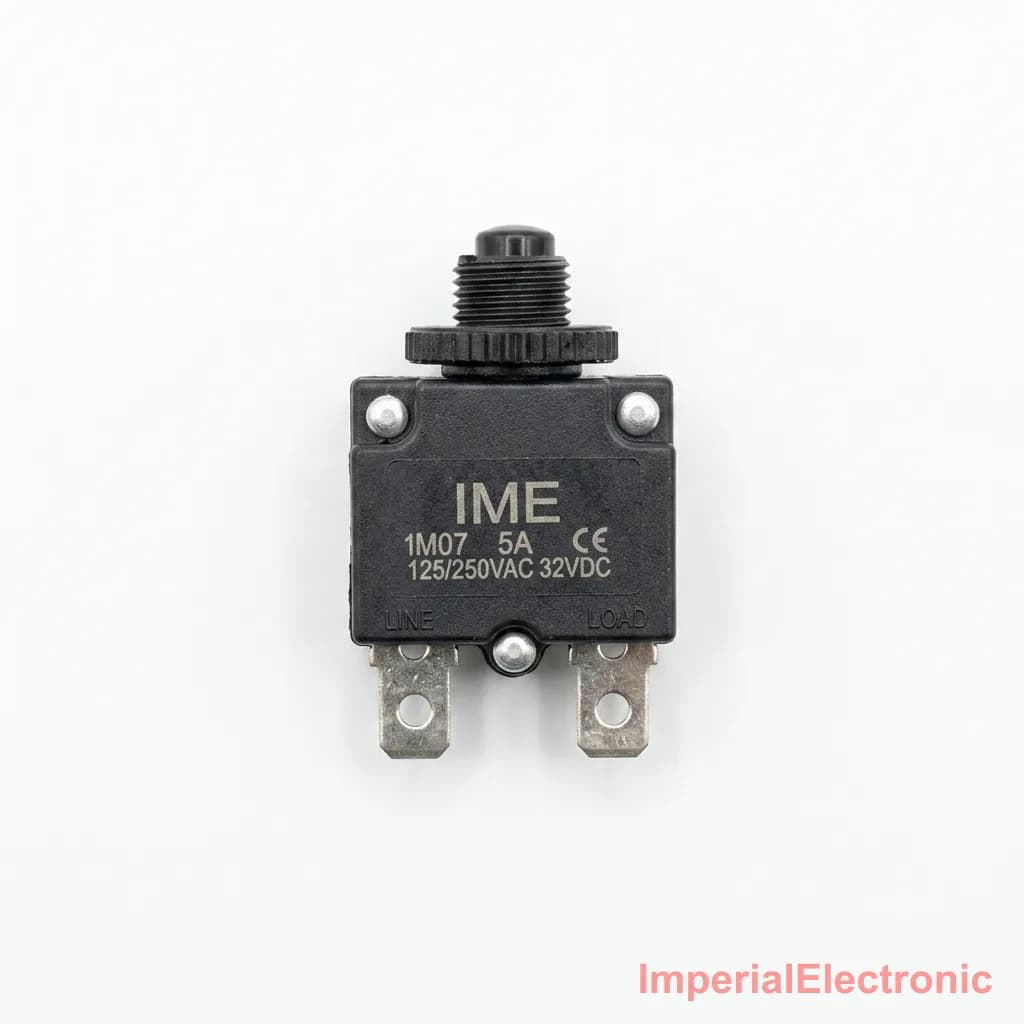

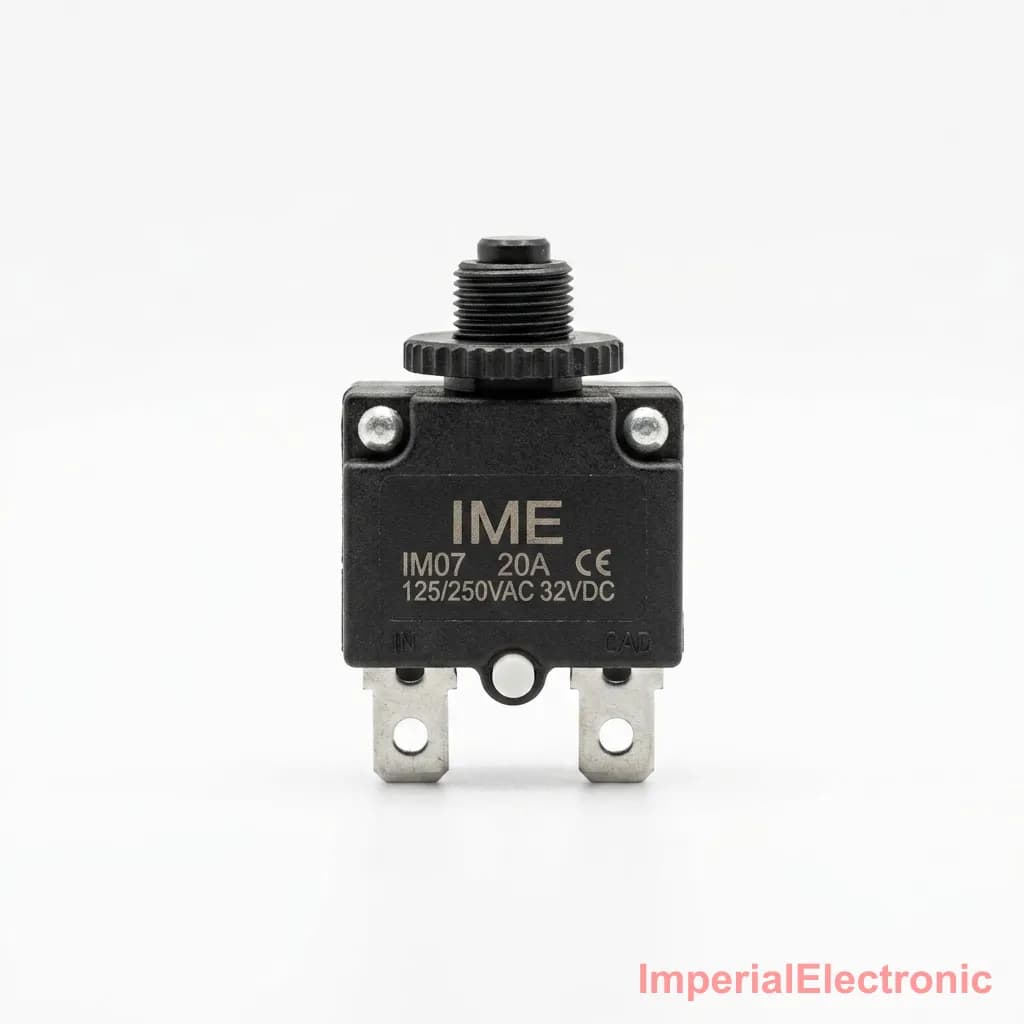

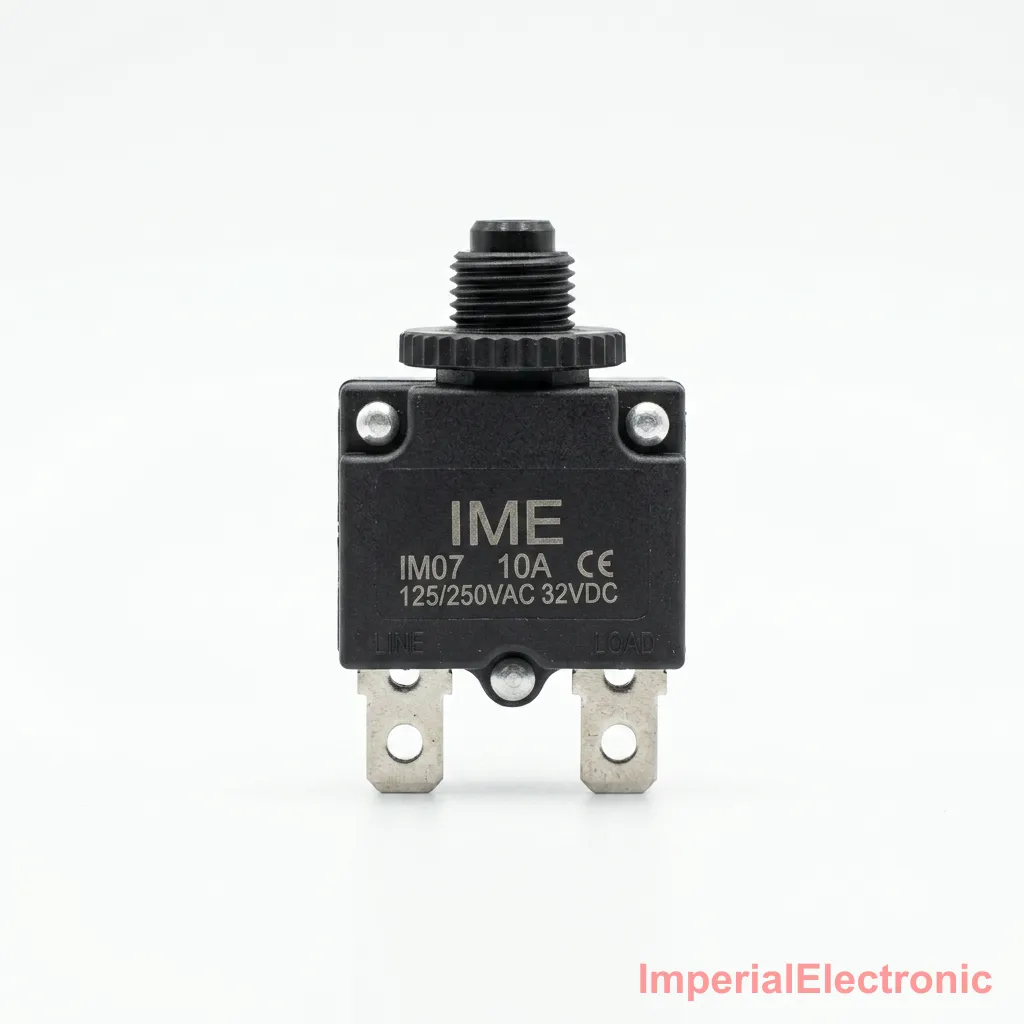

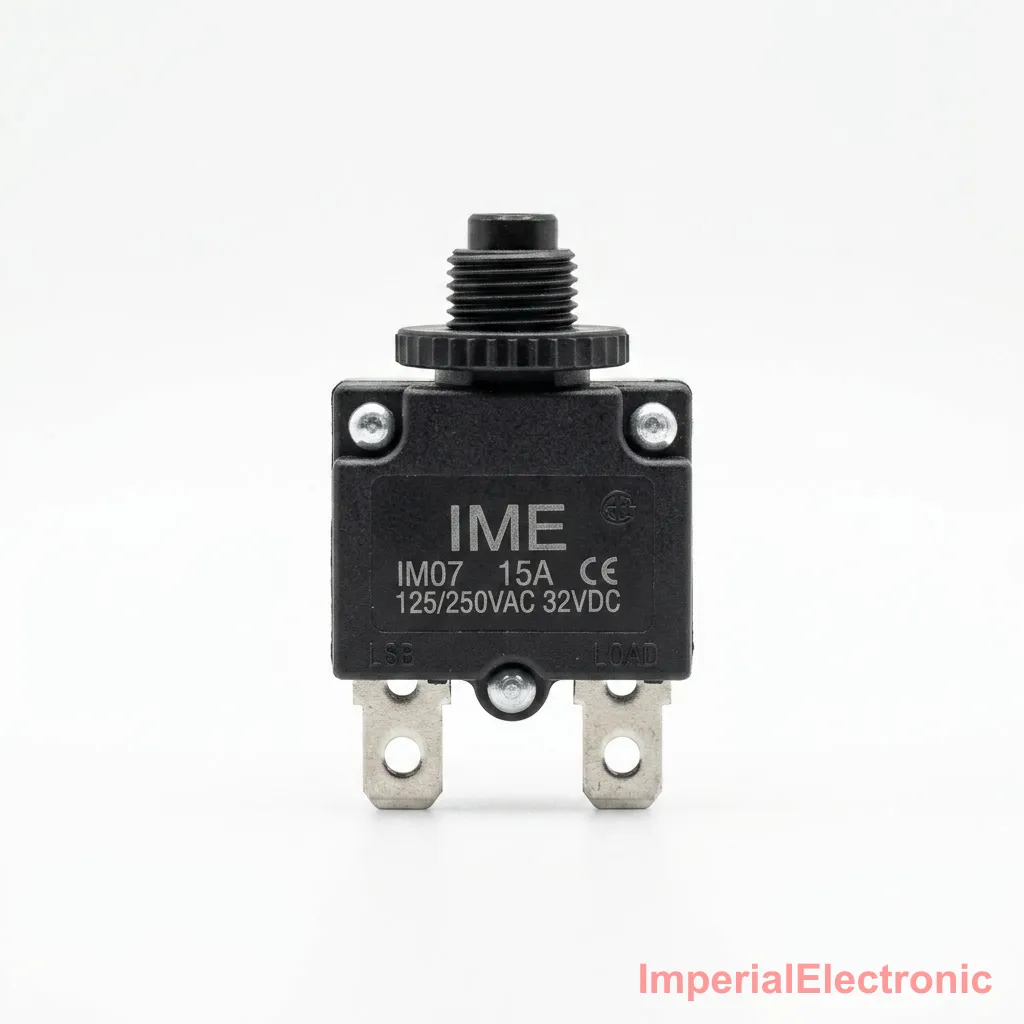

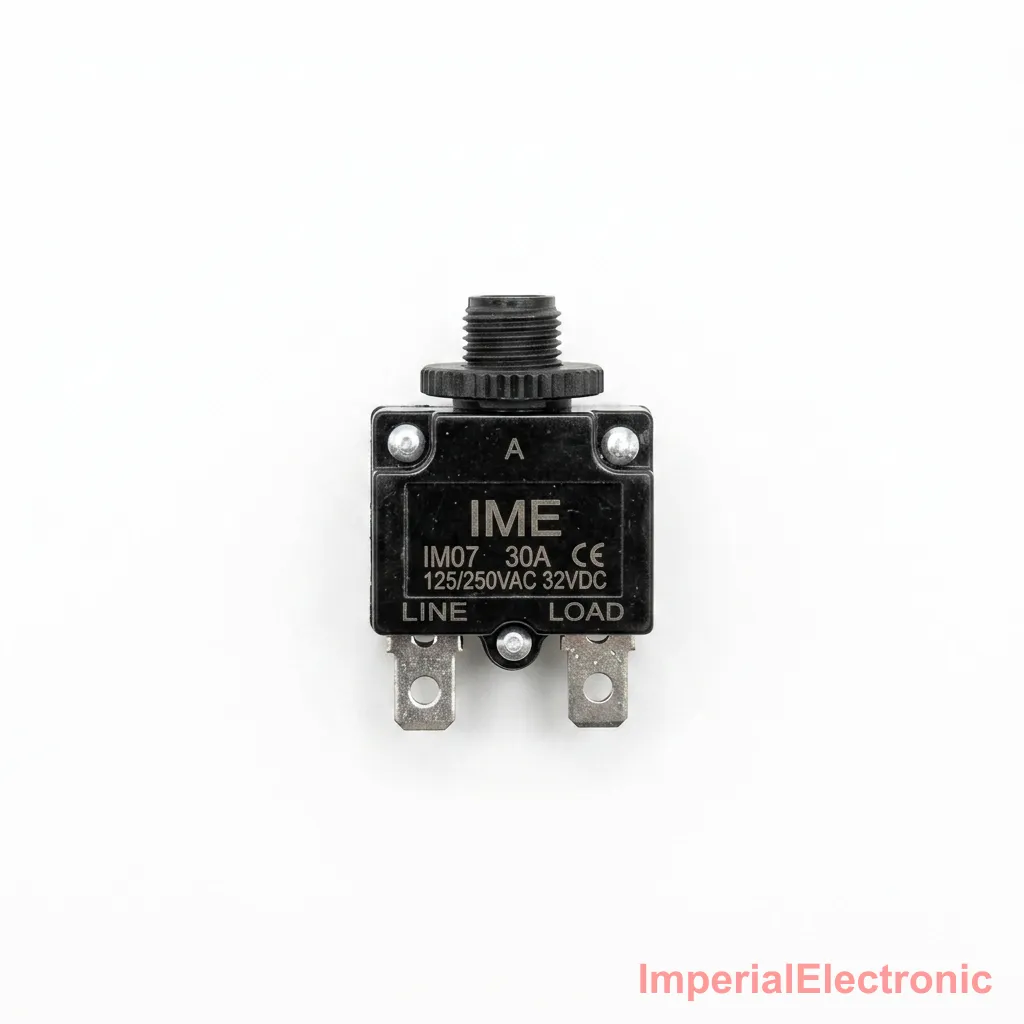

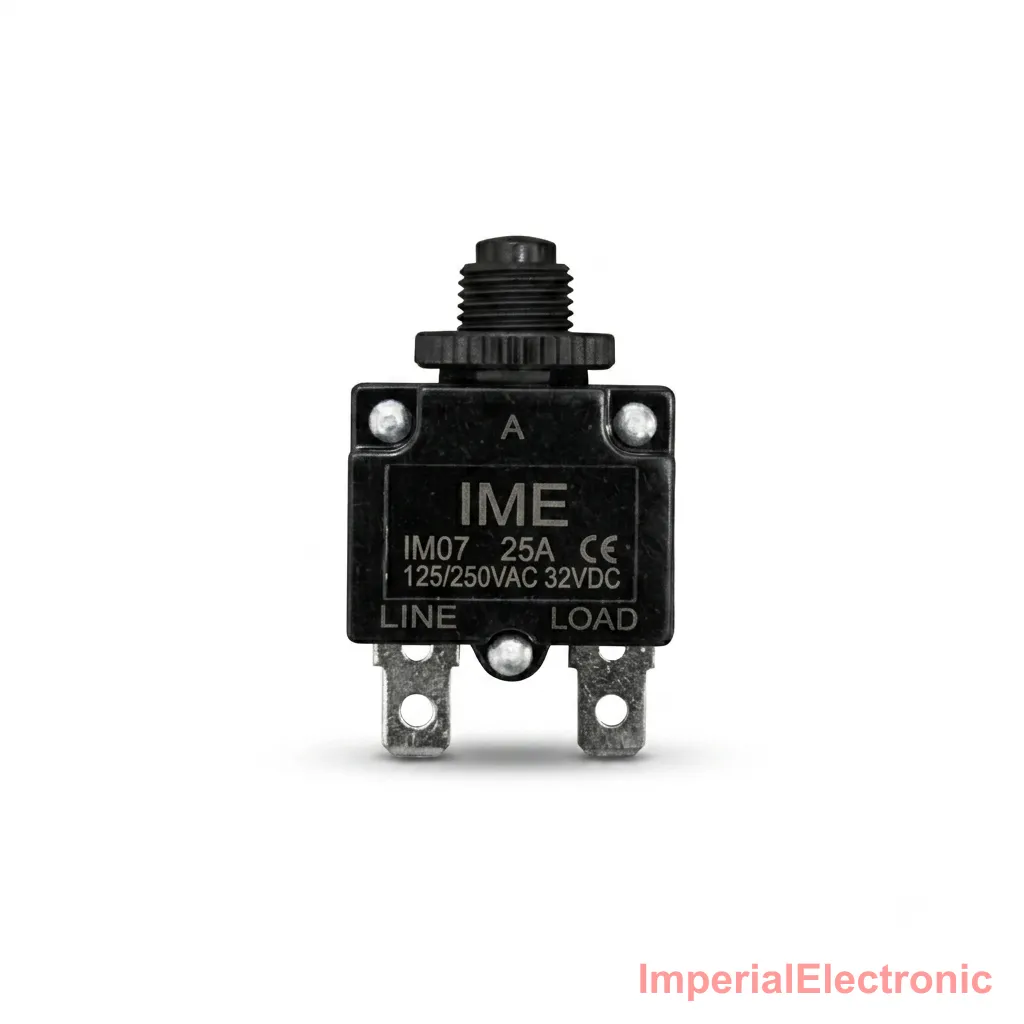

Automatic Overload Fuse Breaker (IM07)
The IM07 Automatic Overload Fuse Breaker is designed to safeguard delicate electrical circuits and machinery against high current draw and power surges. Built with a heat-resistant Bakelite housing, it features a convenient push-to-reset mechanism, quick-connect spade terminals, and a knurled mounting nut for straightforward panel installation. This versatile breaker is an ideal choice for protecting submersible water pumps, small power inverters, DIY electronics, and industrial control boxes. Reliable circuit cut-offs like the IM07 provide essential peace of mind against current spikes and irregular electrical loads common in local grid networks.
Specifications
- Model
- IM07
- Max Current / Load
- 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A, 30A
- Rated Voltage
- 125 / 250V AC, 32V DC
- Protection Types
- Automatic Overload Protection
- Reset Method
- Manual Push-to-Reset Button
- Material
- Bakelite
- Terminal Type
- Quick-Connect Spade Terminals
- Mounting Type
- Panel Mounting (Knurled Nut)
- Certifications
- CE
- Country of Origin
- China
