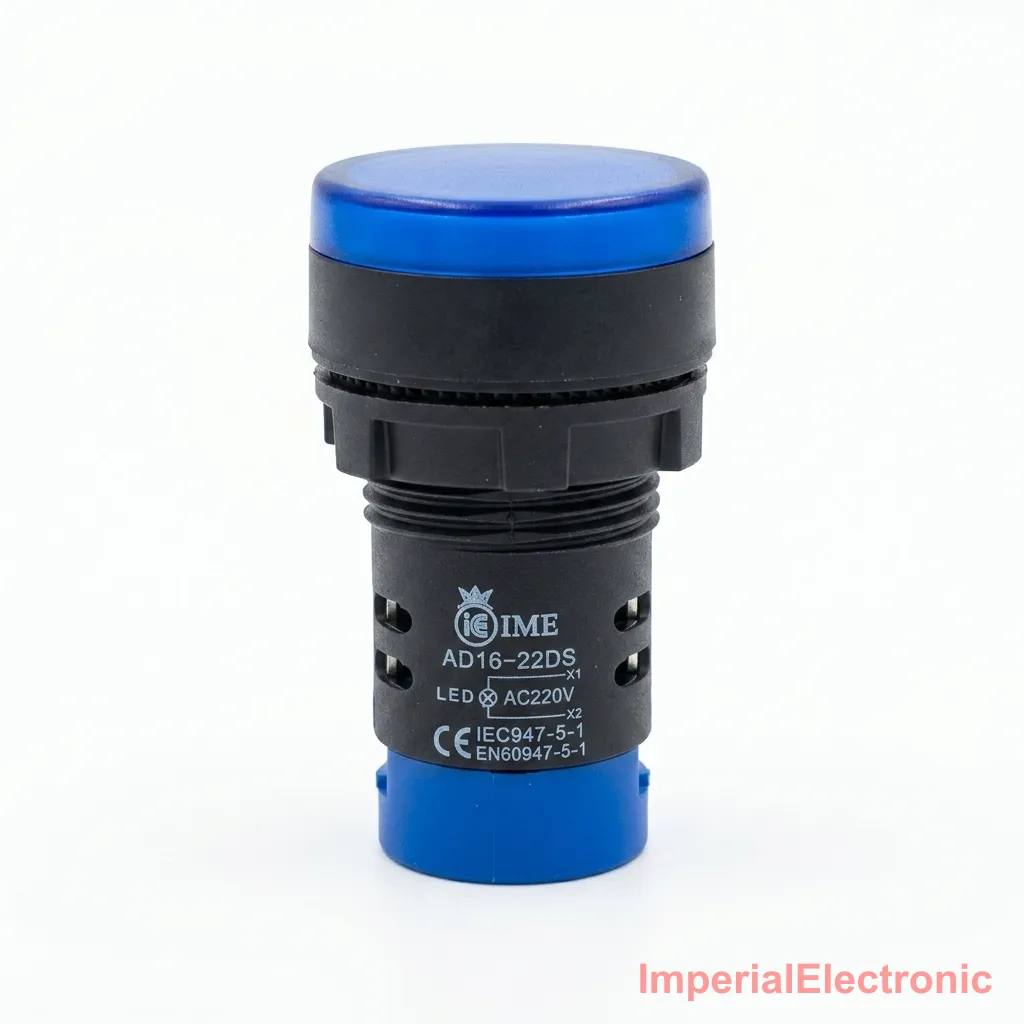

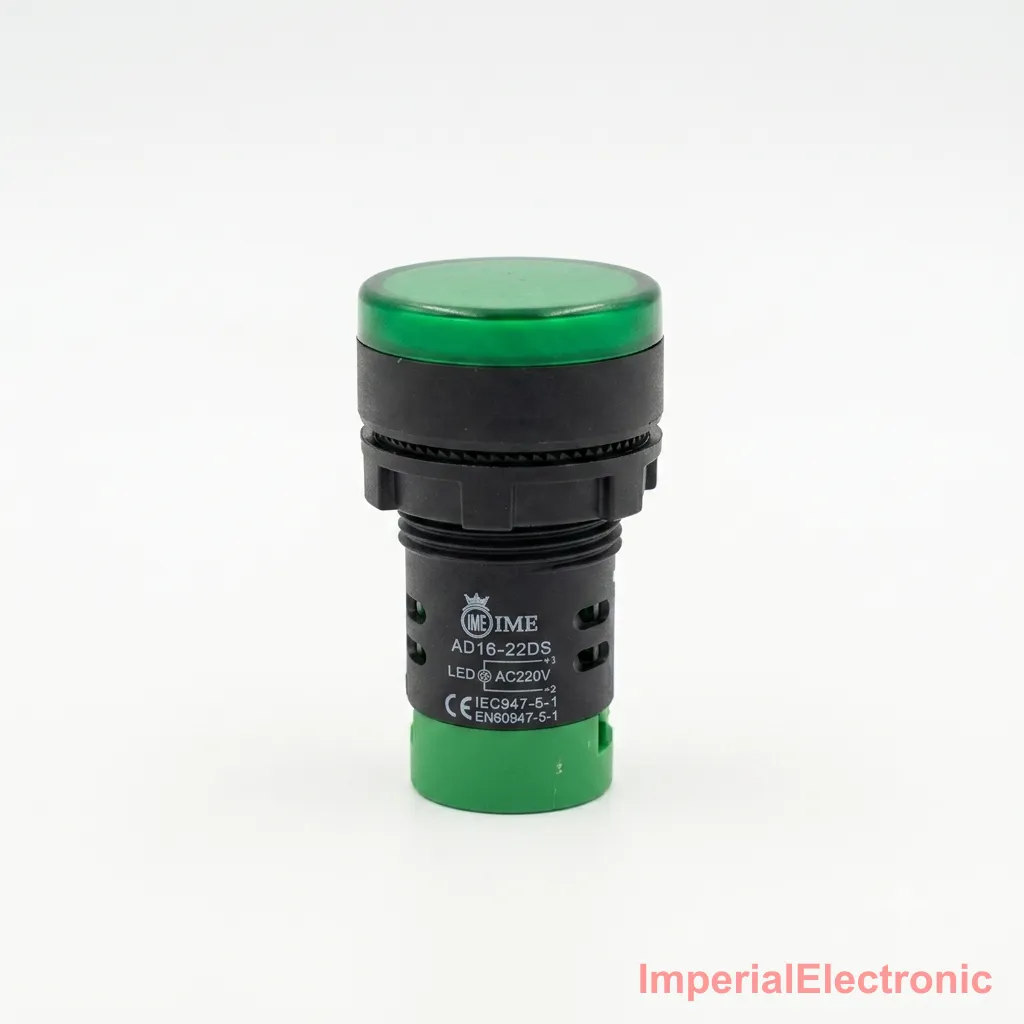

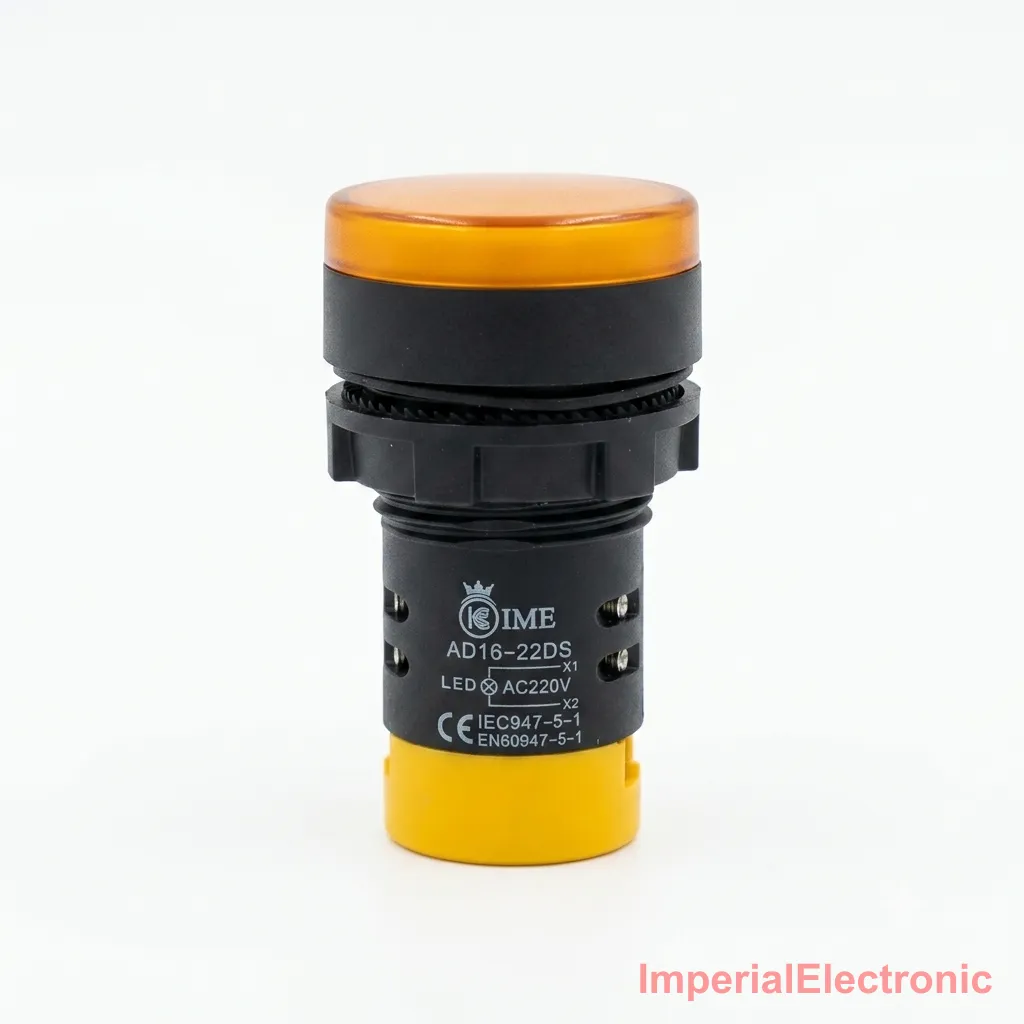

Panel Indication Light 22mm (AD16-22DS)
The IME 22mm Panel Indication Light (AD16-22DS) is designed to provide clear visual status monitoring for electrical control systems. Equipped with high-brightness SMD LEDs, it ensures maximum visibility across standard 220V AC applications and is available in red, green, yellow, and blue. Its durable plastic construction and secure screw-terminal connection make it an ideal choice for installation in industrial machinery, control panel boards, or custom DIY electrical projects. Built to CE and IEC 60947-5-1 standards, it offers an efficient and reliable visual signalling solution for the power-monitoring needs of Pakistan's industrial and commercial setups.
Specifications
- Model
- AD16-22DS
- Mounting Diameter
- 22mm
- Rated Voltage
- 220V AC
- Light Type
- High Brightness SMD LED
- Available Colours
- Red, Green, Yellow, Blue
- Termination / Connection
- Screw Connection
- Housing Material
- Plastic
- Standards
- IEC 60947-5-1, EN 60947-5-1, CE
- Applications
- Panel boards, industrial machinery, DIY projects
- Country of Origin
- China
