Schneider

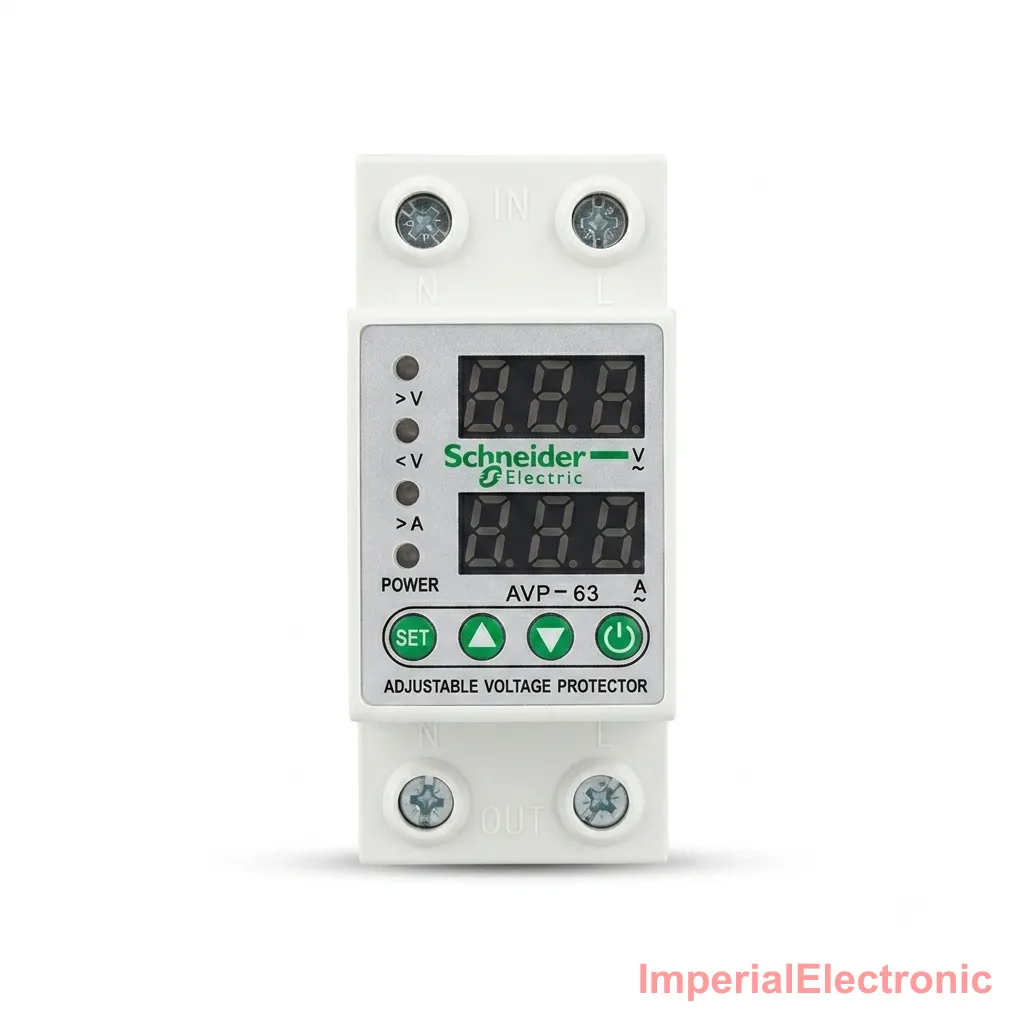

Schneider Adjustable Automatic Voltage and Ampere Protection Breaker 63A (AVP-63)
The Schneider AVP-63 Adjustable Over/Under Voltage and Overcurrent Protector delivers comprehensive digital protection for high-load residential and commercial electrical systems. Designed to guard against dangerous electrical spikes, voltage drops, and current overloads, it features fully configurable parameters—including trip delays down to 0.1 seconds, customized reset times, and real-time voltage/current monitoring. It is ideal for safeguarding whole-house distribution boards, air conditioners, refrigeration equipment, and sensitive electronic appliances from severe power surges and unstable loads. Built with high precision and an energy-saving display mode, it offers a robust defense tailored to withstand the severe grid fluctuations and power irregularities common in Pakistan.
Specifications
- Model
- AVP-63
- Rated Voltage
- AC 220V (50Hz / 60Hz)
- Max Current / Load
- 63A (Adjustable 1A – 63A)
- Protection Types
- Over-Voltage, Under-Voltage, Over-Current, Quick Power-Down Protection
- Over-Voltage Protection Range
- AC 130V – 300V (Adjustable)
- Under-Voltage Protection Range
- AC 80V – 210V (Adjustable)
- Tripping Time / Response Time
- Voltage/Current Trip Delay: 0.1s – 10s; Over-voltage trip delay: 0.5s
- Power-On / Recovery Delay Time
- 1s – 999s (Adjustable)
- Voltage Accuracy
- < 1%
- Operating Temperature
- -25°C to +50°C
- Dimensions
- 81 × 36 × 66 mm
- Operating Modes
- Standard, Manual, Automatic
