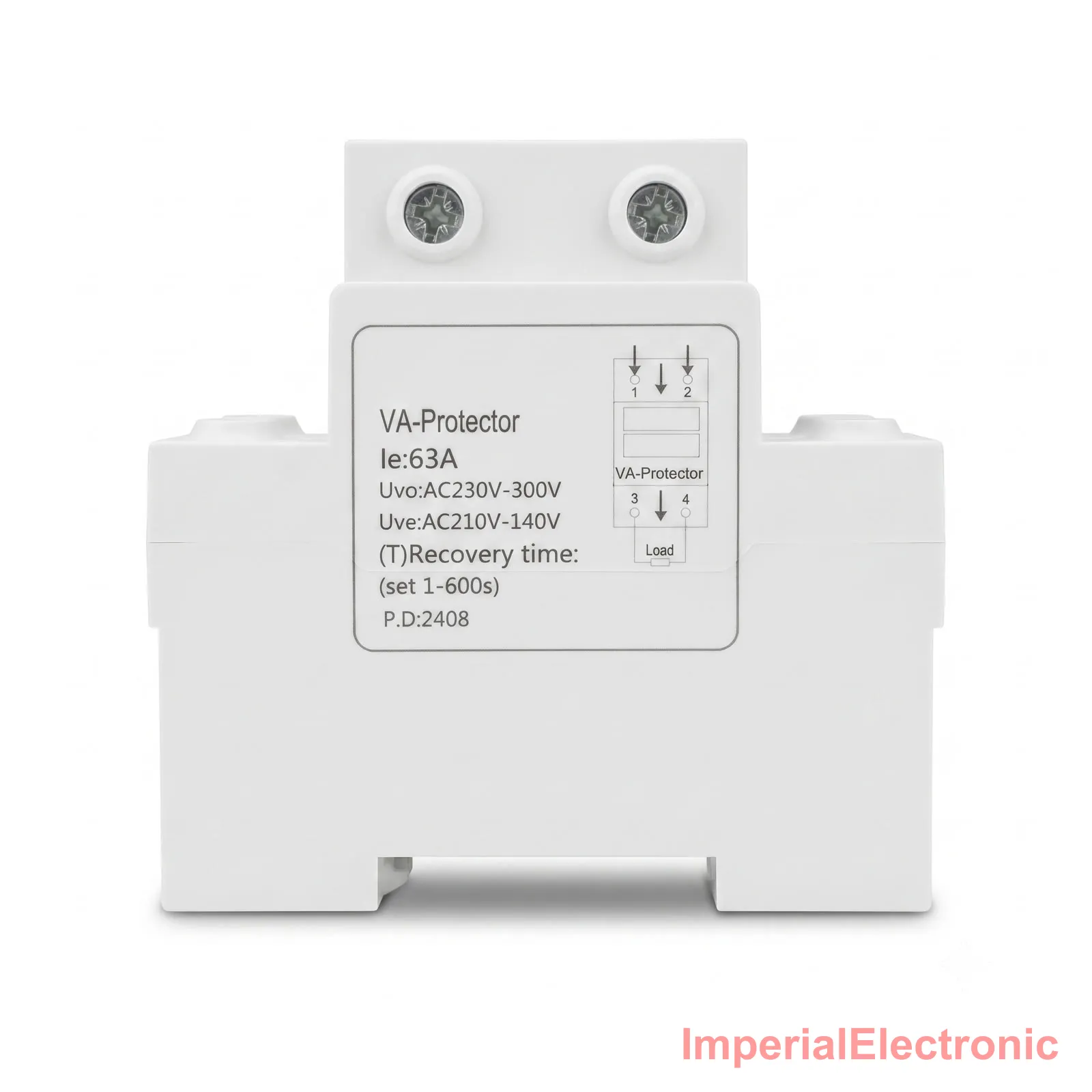

Adjustable Voltage and Ampere Protection Breaker 63A
The VA-Protector is an advanced digital protection device engineered to safeguard your sensitive electrical equipment against severe power anomalies. Featuring a wide operating range of AC 80V to 400V and a high 63A load capacity, it delivers real-time defense against over-voltage, under-voltage, and over-current events with a rapid response time as fast as 0.1 seconds. Equipped with a high-accuracy display and fully customizable delay and threshold settings, it is ideal for protecting main power distribution lines, heavy-duty air conditioners, refrigerators, and entire household or commercial circuits. Designed to operate reliably under extreme temperature conditions, this protector offers essential peace of mind against the frequent grid voltage fluctuations and sudden power surges experienced across Pakistan.
Specifications
- Brand
- Generic
- Model
- VA-Protector
- Rated Voltage
- AC 220V
- Operating Voltage Range
- AC 80V–400V (Single Phase)
- Rated Frequency
- 50/60 Hz
- Max Current / Load
- 63A
- Protection Types
- Over-Voltage, Under-Voltage, Over-Current
- Over-Voltage Range
- 230V–300V (Adjustable)
- Under-Voltage Range
- 140V–210V (Adjustable)
- Over-Current Protection Range
- 1A–63A (Adjustable)
- Tripping Time / Response Time
- 0.1s–30s (0.5s default trip delay)
- Recovery / Start Delay Time
- 1s–600s (Adjustable)
- Voltage Measurement Accuracy
- 2%
- Rated Insulation Voltage
- 400V
- Output Contact
- 1NO
- Protection Degree
- IP20
- Operating Temperature
- -50°C to 55°C
