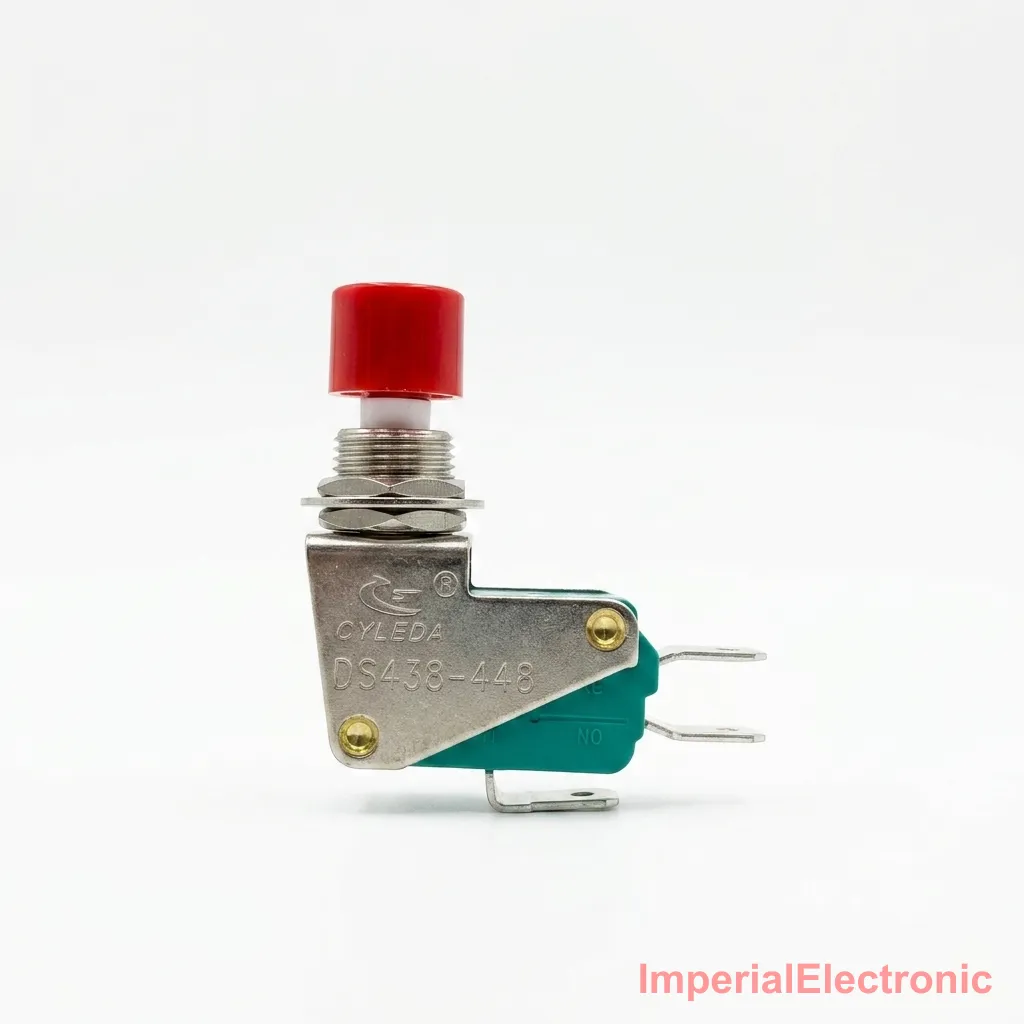

Limit Switch Double Fitting (DS-448)
The Cnleda Limit Switch Double Fitting (DS-448) is a robust, dual-pole industrial switch engineered for precise circuit control and reliable automation. Built with high-grade copper and silver alloy contacts alongside silver-plated terminals, it delivers high conductivity and low resistance for heavy-duty operation up to 15A and 380V. Featuring a DPDT (2NO 2NC) contact configuration inside a durable ABS housing, this switch easily handles double-fitting mechanical setups requiring dual-circuit triggering. It is an ideal choice for machinery limit control, industrial automation systems, heavy equipment panels, and demanding DIY electrical projects. Designed to perform across wide temperature swings and withstand standard factory environments, it offers dependable switching performance across Pakistan's diverse industrial landscape.
Specifications
- Model
- DS-448
- Rated Voltage
- 380V Max
- Max Current / Load
- 15A
- Protection Types
- IP40
- Contact Configuration
- DPDT (2NO 2NC)
- Terminal / Termination Type
- Pin (Silver Plated)
- Contact Material
- Copper + Silver Alloy
- Contact Resistance
- 50mΩ Max
- Insulation Resistance
- 100MΩ Max (at 500 VDC)
- Electrical Life
- 10,000 Cycles Min
- Operating Temperature
- -25°C to 85°C
- Housing Material
- ABS
