Generic

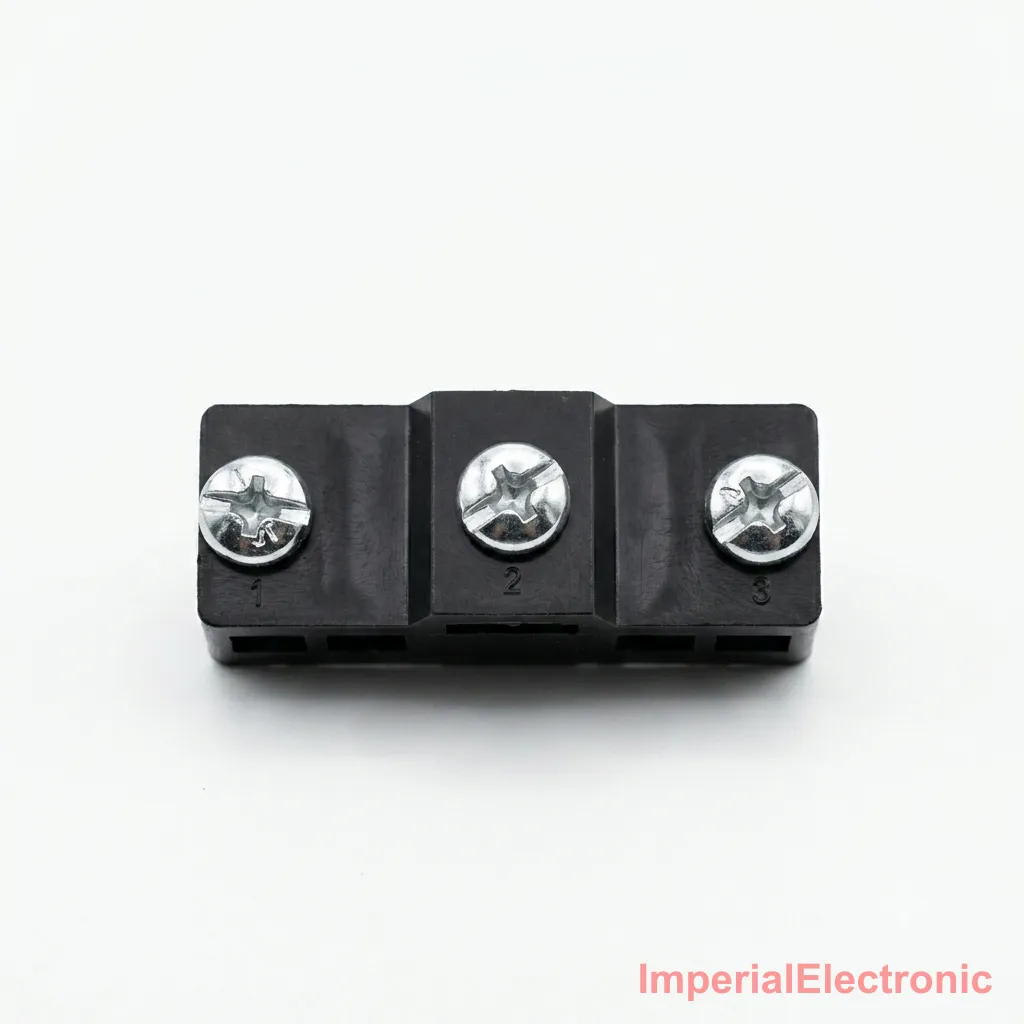

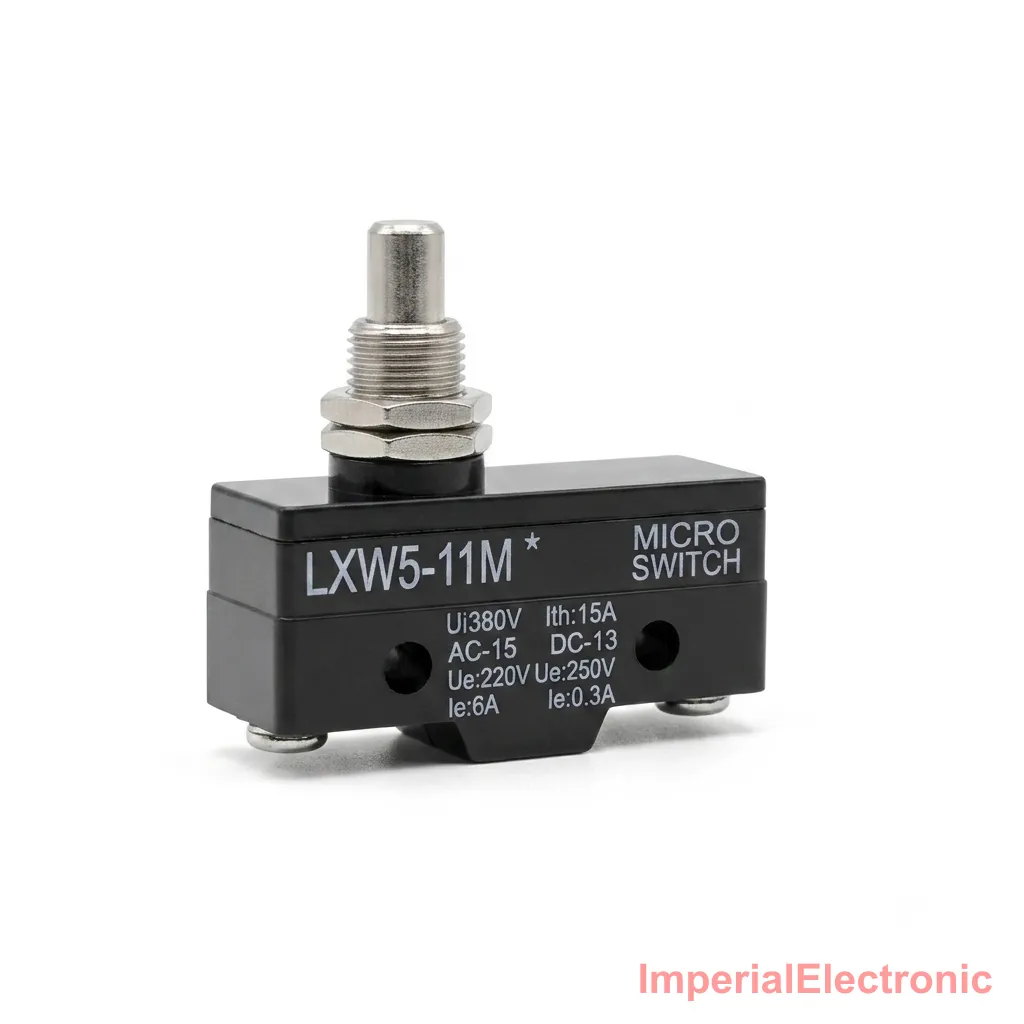

Micro Limit Switch (LXW5-11M)
The LXW5-11M Micro Limit Switch is a robust electromechanical control switch designed to safely regulate and protect industrial machinery. Featuring a high-capacity SPDT contact arrangement with 1NO + 1NC configuration, it offers fast and reliable circuit switching rated up to 15A AC and 13A DC. Built with a durable plastic and steel housing and premium nickel-plated copper terminals, it provides an exceptional electrical operating lifespan of over 100,000 cycles. It is ideally suited for position sensing, limit control, and safety interlocks in automated equipment, conveyors, and heavy industrial panels. In Pakistan's demanding manufacturing environments, this switch provides dependable, heavy-duty performance despite frequent physical wear and electrical surges.
Specifications
- Model
- LXW5-11M
- Circuit Configuration
- SPDT (1NO + 1NC)
- Max Current / Load
- 15A AC / 13A DC
- Rated Voltage
- 220V AC / 250V DC
- IP Protection Level
- IP40
- Housing Material
- Plastic & Steel
- Contact Material
- Copper
- Terminal Type
- Nickel Plated
- Electrical Life
- 100,000 Cycles Min
- Mechanical Life
- 10,000 Operations
- Applications
- Industrial machinery
- Country of Origin
- China
