Daier

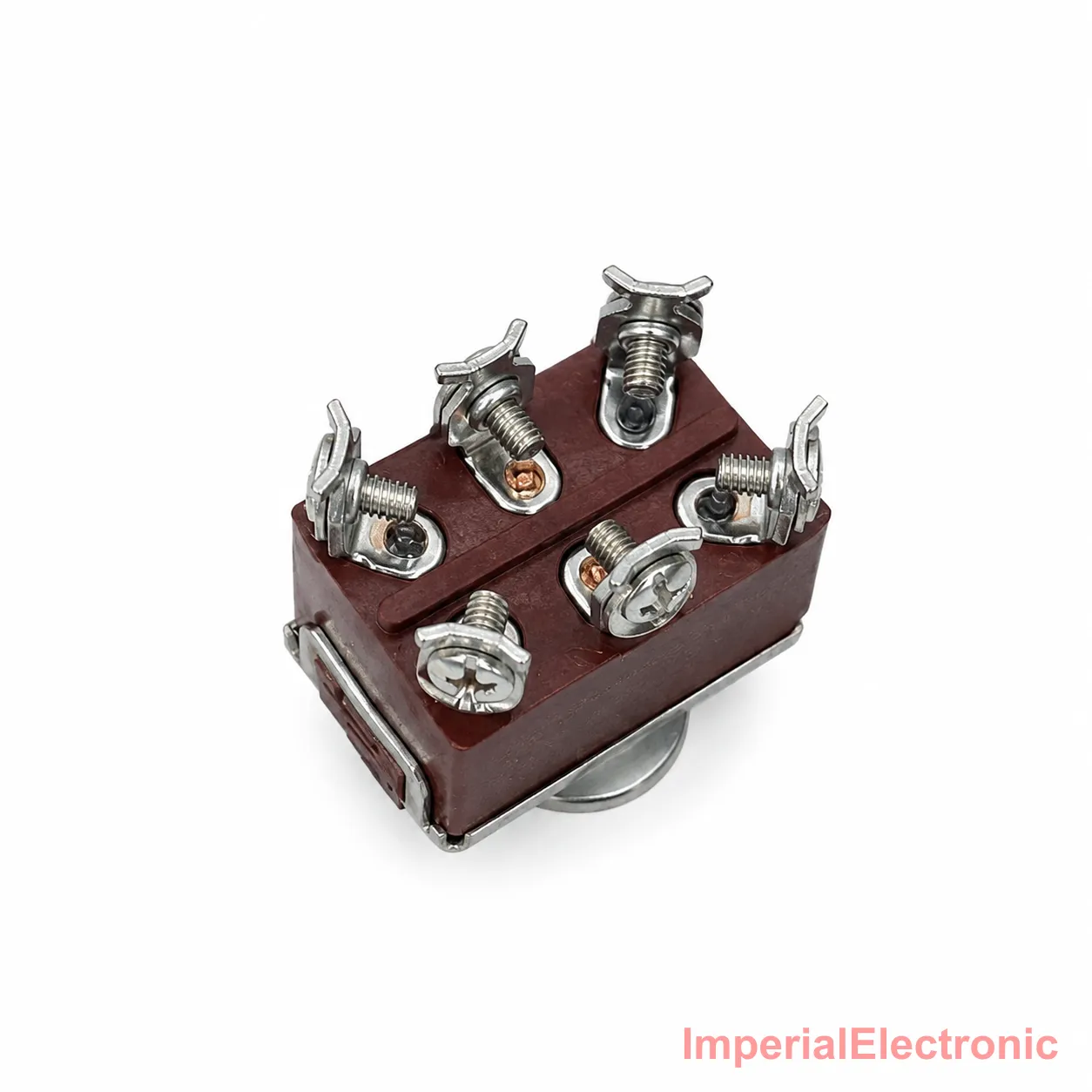

Toggle Switch 6-Pin DPDT Momentary Double Reset (Daier KN3C-223)
The Daier KN3C-223 is a heavy-duty Double Pole Double Throw (DPDT) momentary toggle switch designed for high-current circuit switching applications. Featuring a double reset (ON)-OFF-(ON) operation, the switch automatically returns to the centre OFF position when released. Built with robust screw terminals and a durable metal actuator, it is ideal for motor reversing controls such as winches, linear actuators and power windows, industrial control panels for machine momentary triggering and safety override circuits, automotive and marine systems needing temporary high-power switching, and heavy-duty DIY power and robotics interfaces requiring automatic return-to-centre functionality.
Specifications
- Brand
- Daier
- Model
- KN3C-223
- Configuration
- DPDT (Double Pole Double Throw)
- Switching Logic
- (On) — Off — (On) Double Reset (Momentary Spring-Return on Both Sides)
- Terminal Count
- 6 Screw Terminals
- Rated Voltage / Current
- 15A 250V AC
- Mounting Style
- Panel Mount with Threaded Bushing, Washer and Hex Locknuts
- Certifications
- CE, CQC
- Package Includes
- 1x Daier KN3C-223 Momentary Toggle Switch, 1x Mounting Hardware Kit (Threaded Collar, Locking Washer, Hex Nuts), 6x Terminal Screws (Pre-Installed)
