AL6-M 16mm Square Latching Push Button Switch (Illuminated, Plastic)

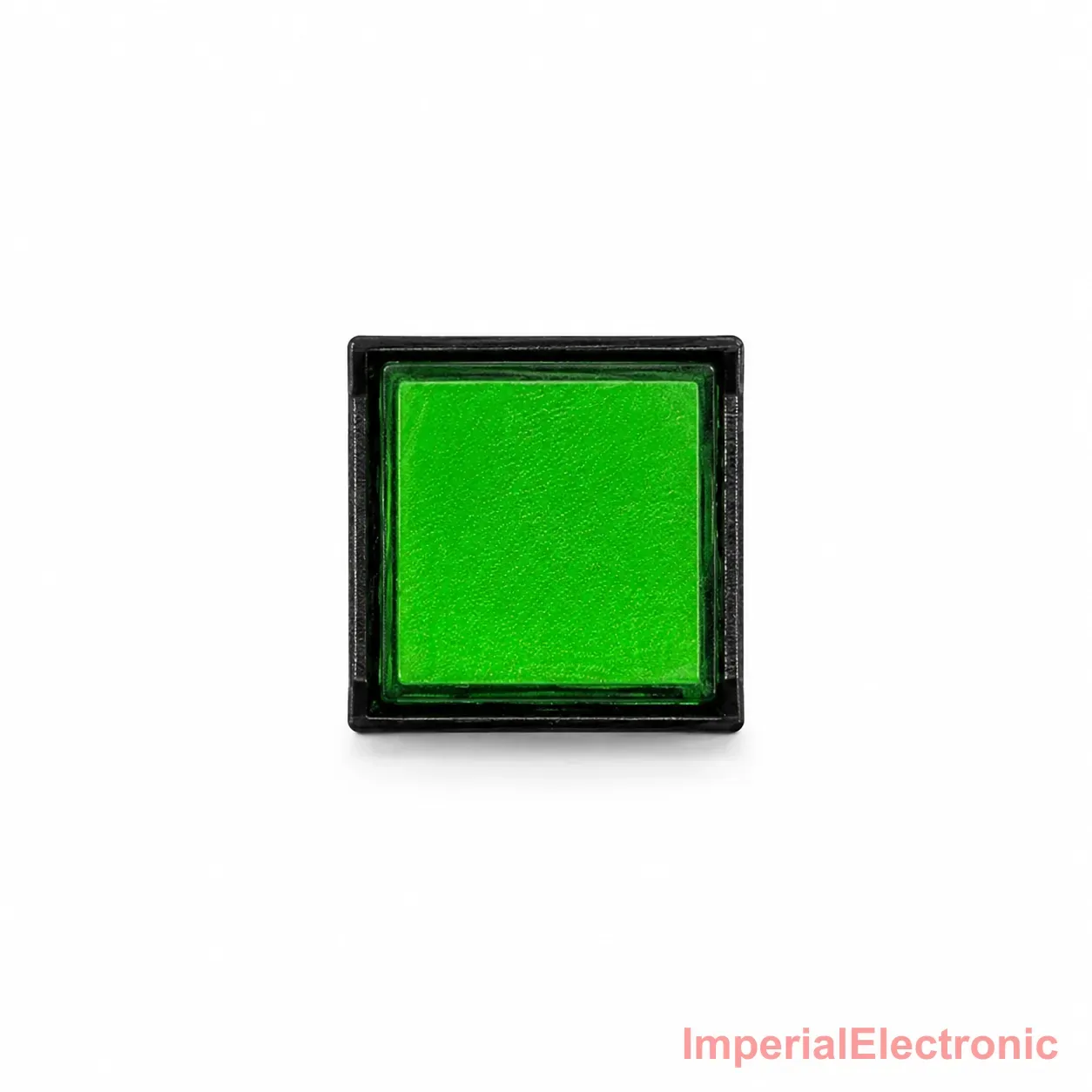

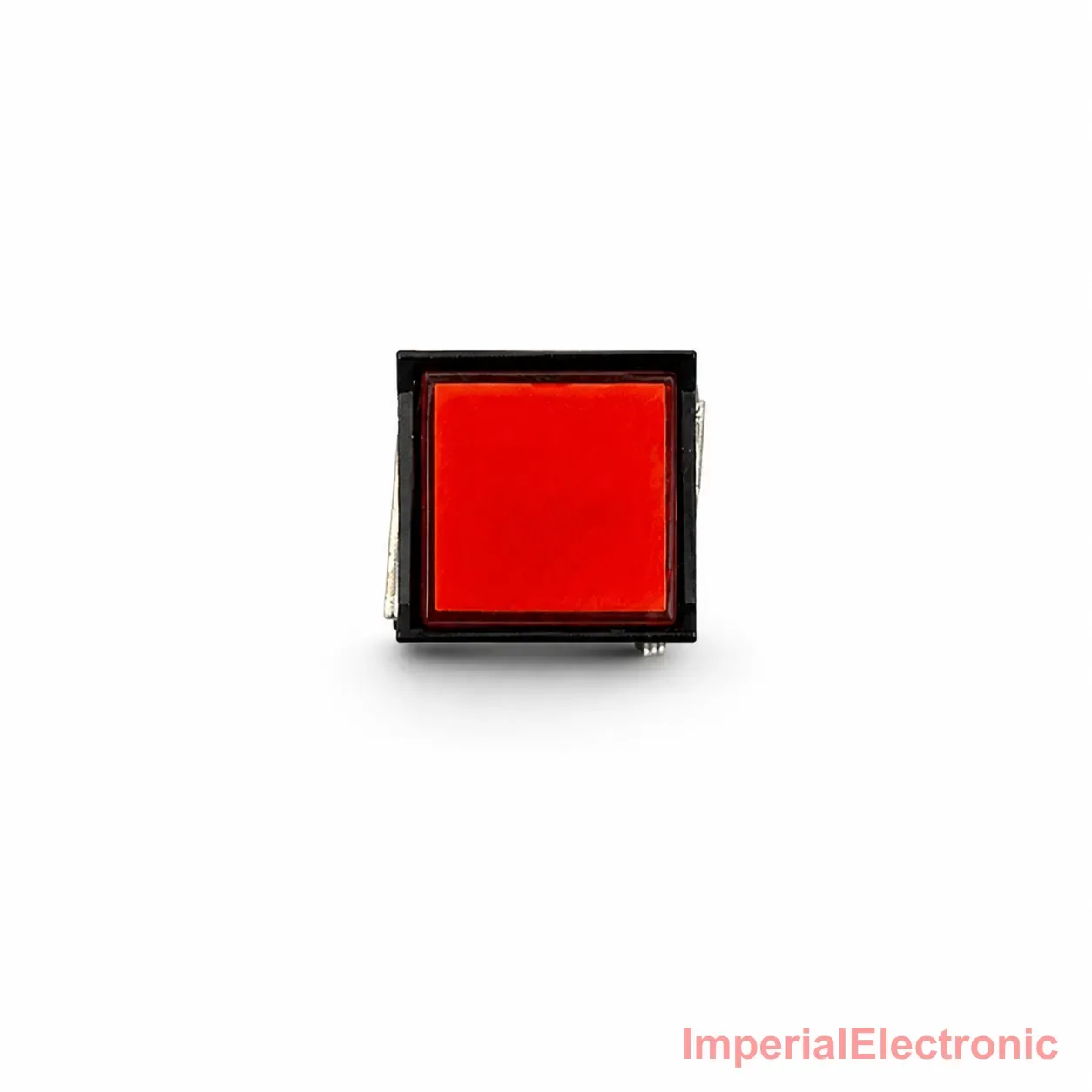

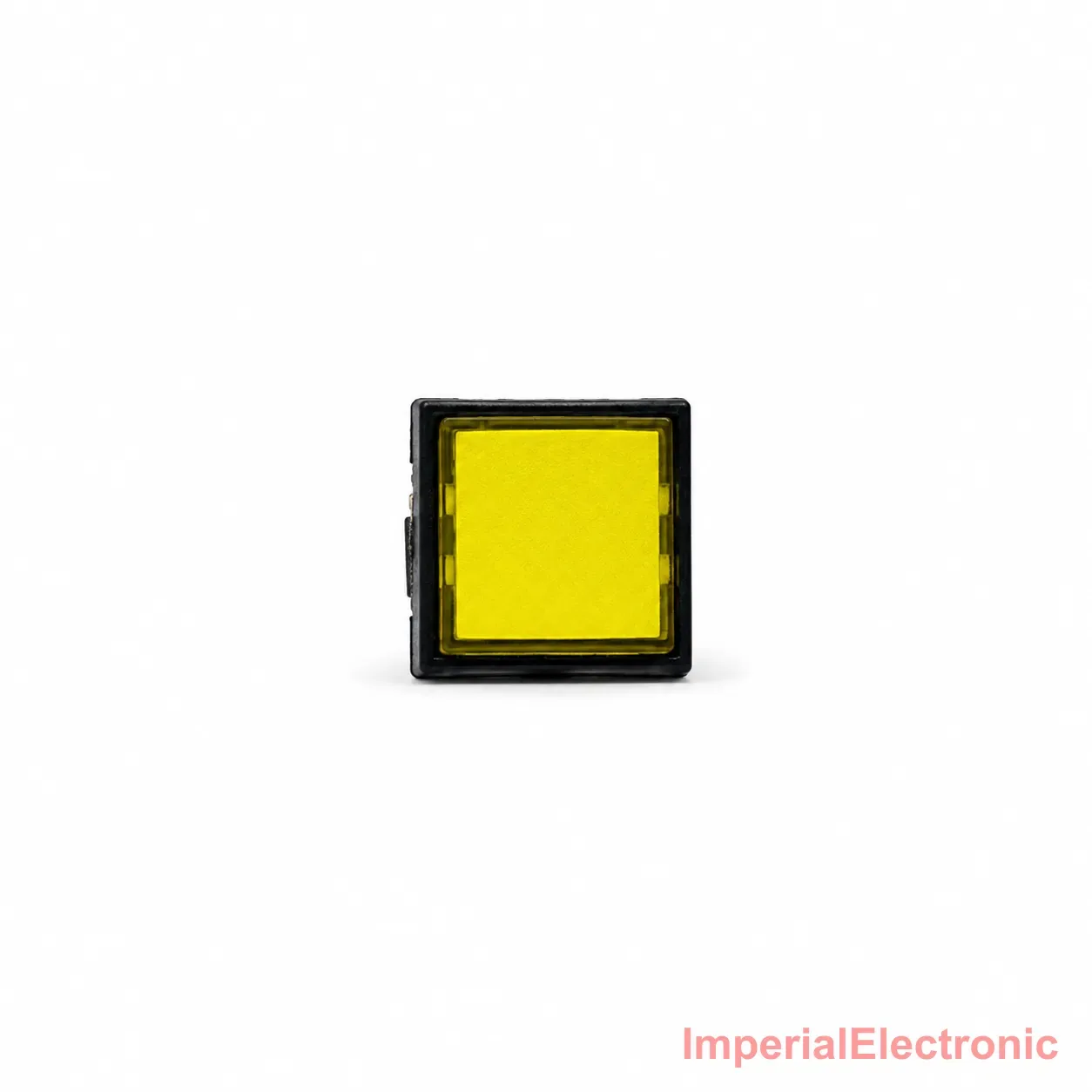

The AL6-M is a square-actuator latching push button that stays in its ON or OFF state after each press, so it doubles as its own position indicator without needing a separate lamp. Its NO and NC contact block gives circuit designers either switching logic from the same body, while the dedicated 12–24V DC indication makes the coloured lens — available in red, green or yellow — usable as a genuine illuminated status light rather than just a coloured cap. The threaded 16mm bushing drops into a standard control-panel cut-out and is rated at 3A 250V AC or 5A 30V DC, comfortable for machinery ON/OFF control, automation panels, and general-purpose instrumentation. It suits control panels and electrical enclosures where operators need a maintained, self-indicating switch rather than a momentary trigger.
