APBB-22 22mm Dual Start/Stop Push Button Switch ("Anda Switch") — Generic

Generic

APBB-22 22mm Dual Start/Stop Push Button Switch ("Anda Switch")

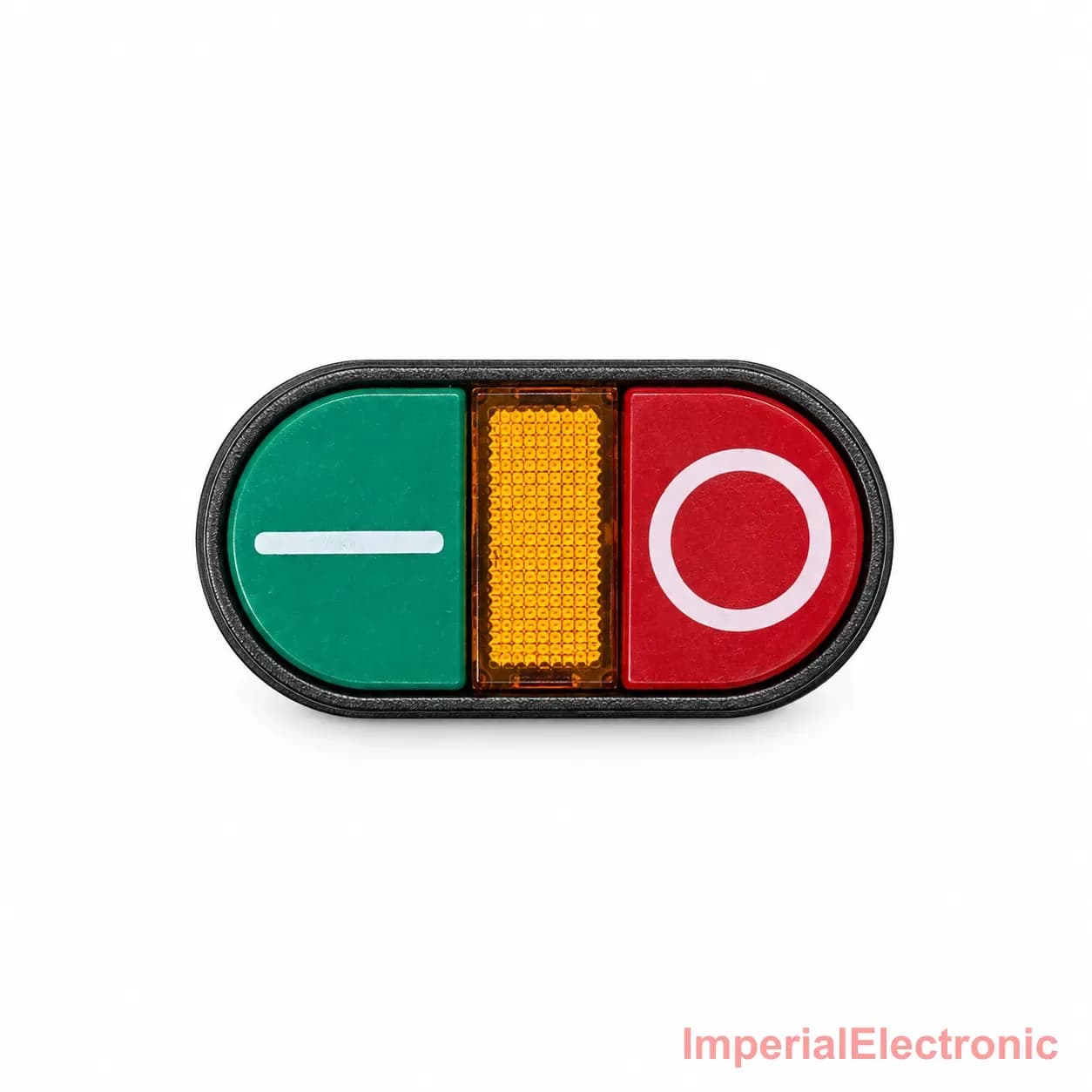

Known as the 'Anda Switch' across Pakistan's electrical trade for its oval, egg-like housing, the APBB-22 puts a green START and red STOP button in one 22mm panel cut-out, with an amber indicator lamp built into the strip between them. That single-hole layout saves drilling two separate mounting holes for what motor and pump control circuits almost always need as a pair, and the shared NO/NC contact block keeps wiring compact behind the panel. Rated to 380V and 10A with a 50,000-cycle electrical life, it's built for direct motor-starter duty rather than light-signal switching, and the 220V AC indicator gives a running/fault status light without any extra wiring beyond the mains feed already at the panel. It's the standard start/stop control for motor starters, water pumps and compressors, workshop machinery, and electrical distribution panels across local industry.

Specifications

Model
APBB-22
Common Market Name
Anda Push Switch
Product Type
Dual Start/Stop Push Button Switch
Control Buttons
Green START (I) + Red STOP (O)
Indicator
Integrated Central Amber Indicator, 220V AC
Maximum Voltage
380V
Maximum Current
10A
Electrical Life
50,000 Cycles
Mounting Diameter
22mm
Mounting Type
Panel Mount
Contact Configuration
NO/NC Contact Block Arrangement
Terminal Type
Metal Screw Terminals
Housing Material
Molded Plastic
Package Includes
1x APBB-22 Dual Start/Stop Push Button Switch with 220V AC Indicator
