LA-38 22mm Metal Bezel Momentary Push Button Switch ("Tik Tik") — Generic

Generic

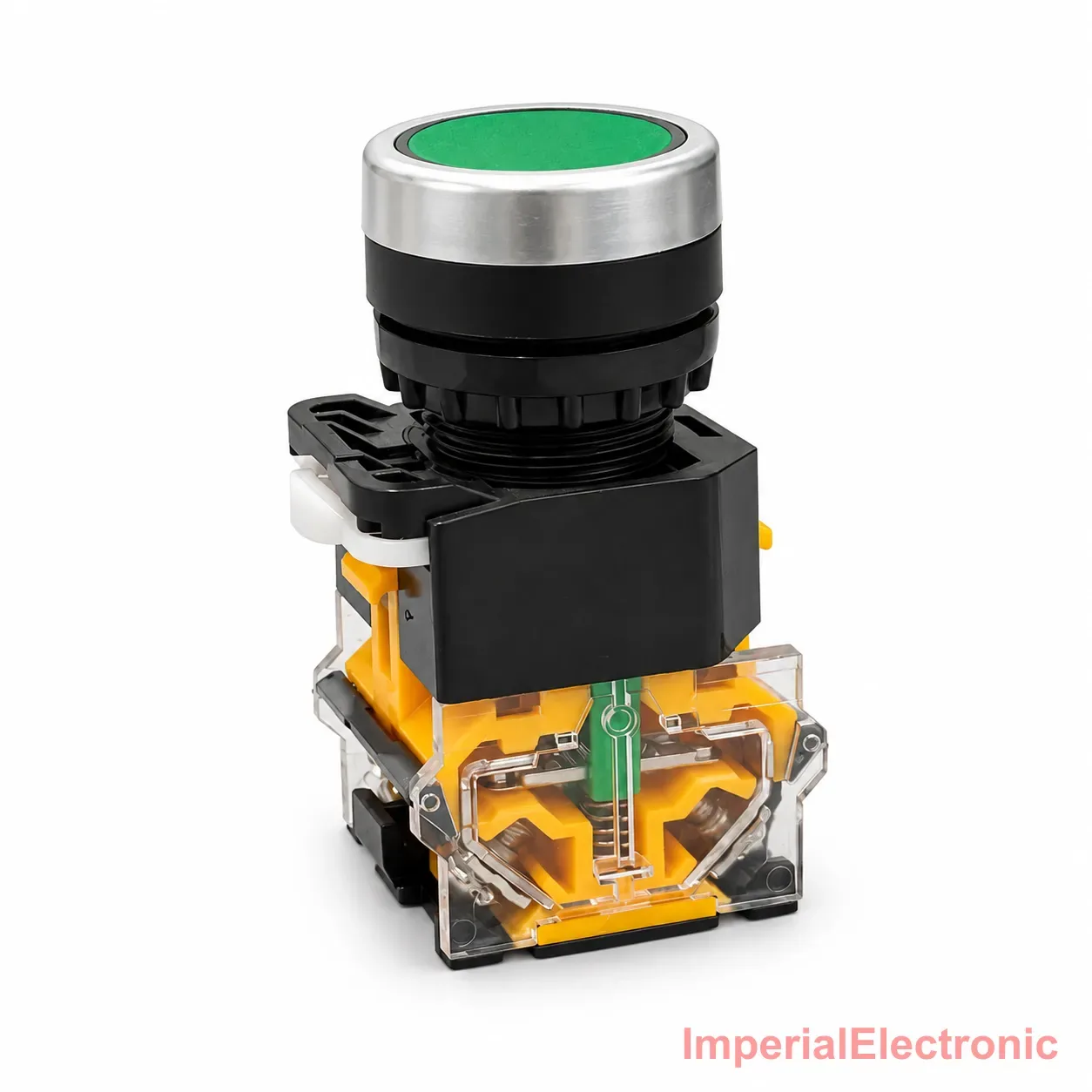

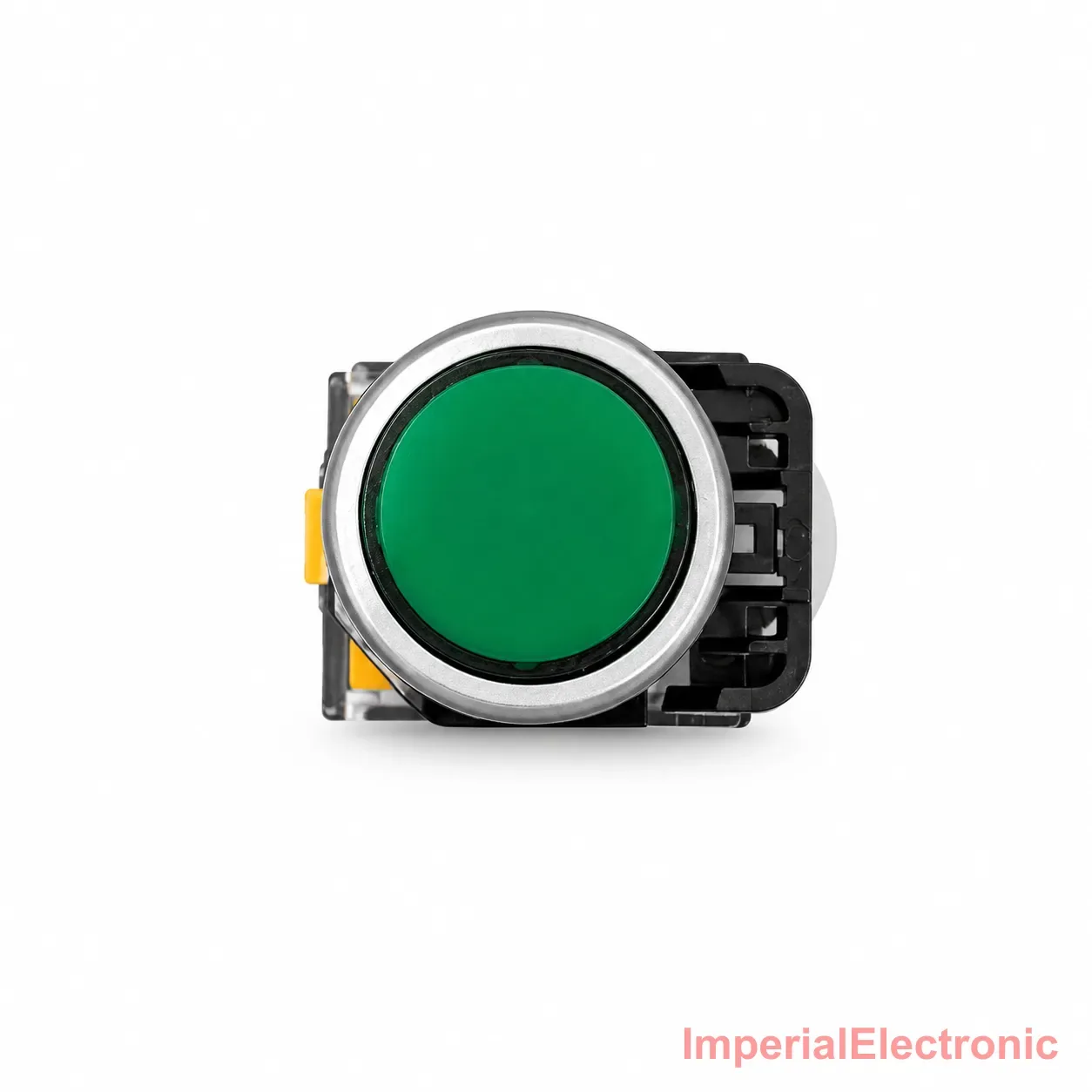

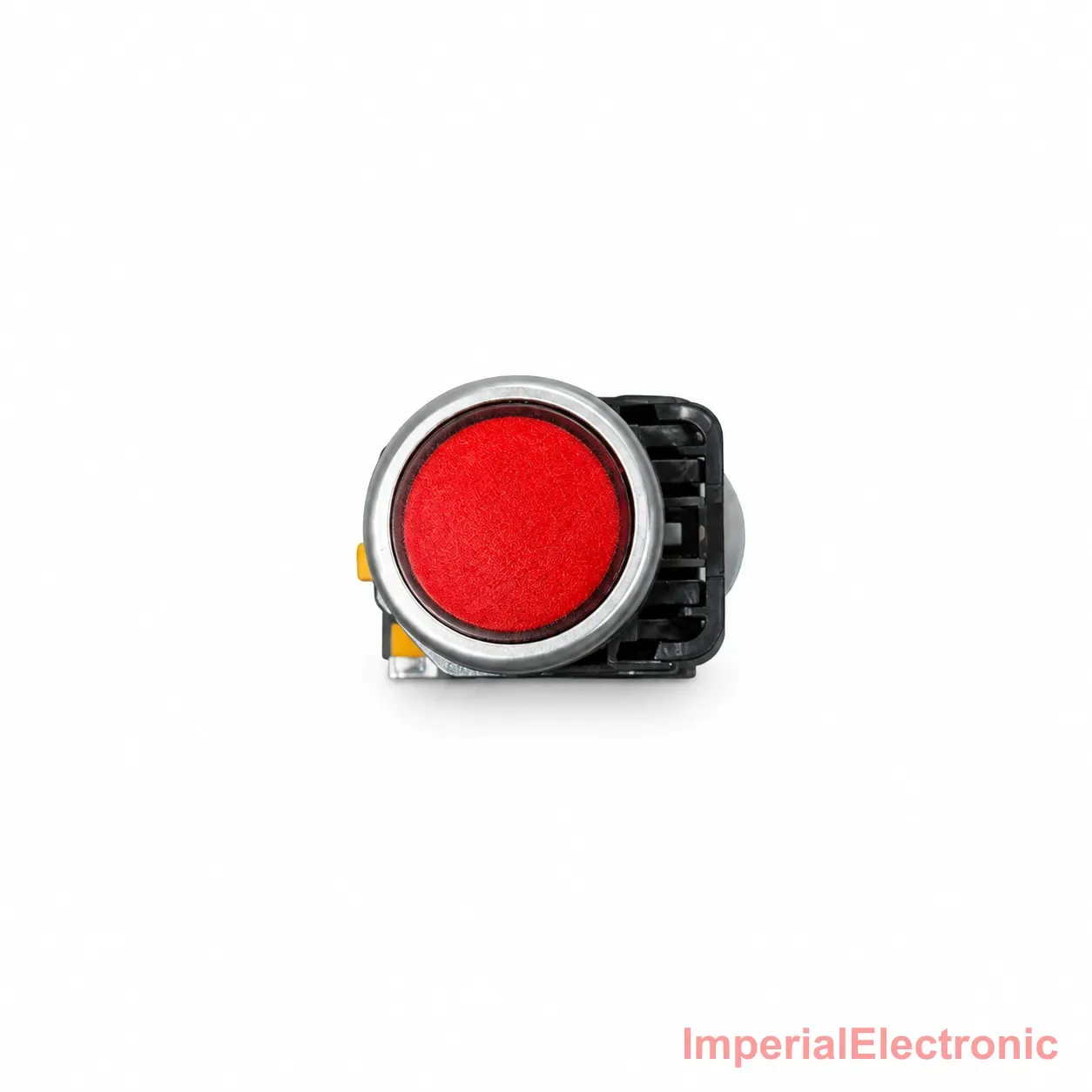

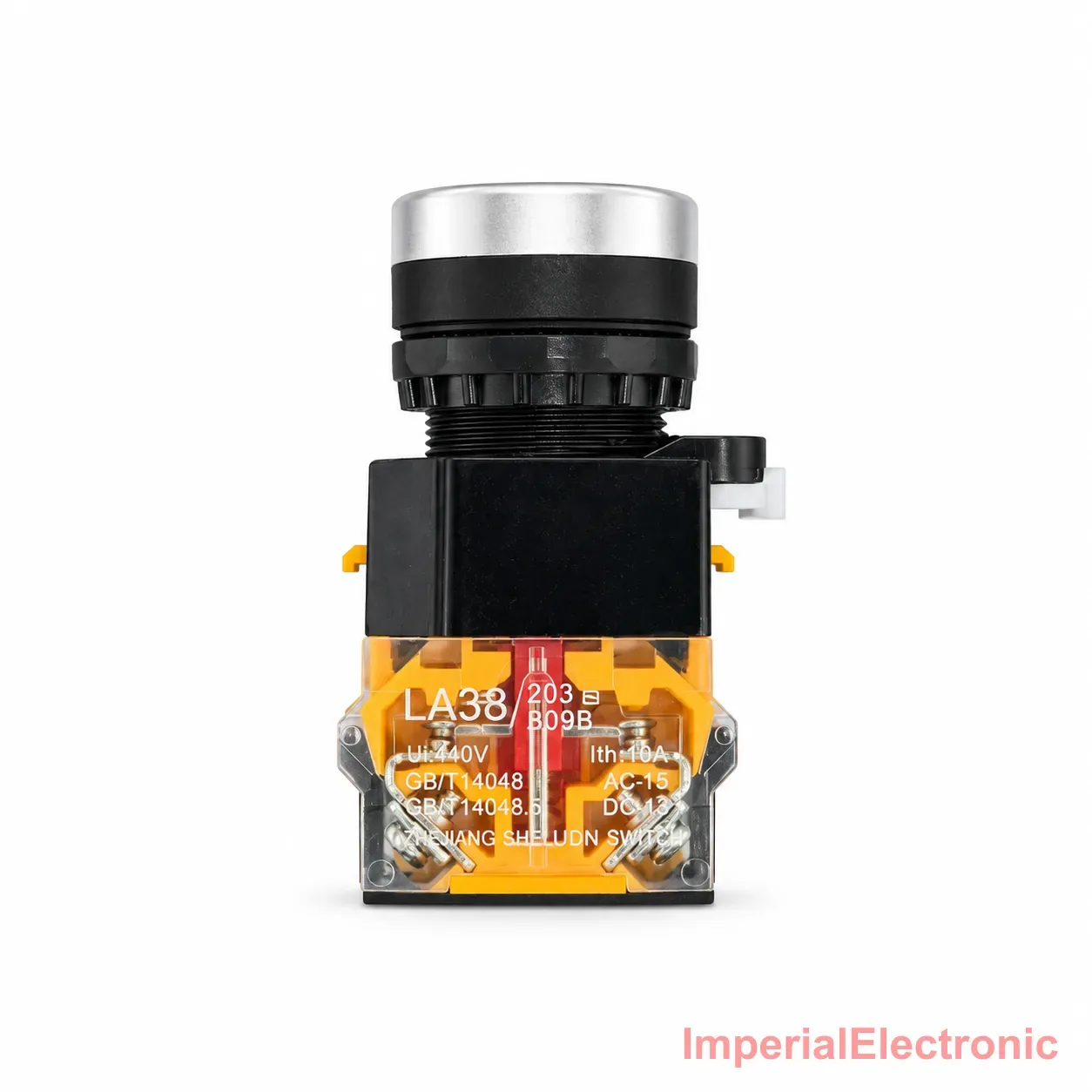

LA-38 22mm Metal Bezel Momentary Push Button Switch ("Tik Tik")

The LA-38 earns its Pakistani nickname 'Tik Tik switch' from the sharp, audible click its flat metal-bezel head gives on every press — a heavy-duty momentary button built for circuits where the operator needs unambiguous tactile and audible confirmation that the button was actually pressed. Its modular 1NO+1NC contact block is rated to 440V AC and 10A, well beyond most panel-mount push buttons, and the transparent base lets a technician visually check contact status during fault-finding rather than guessing from outside the enclosure. A 60,000-operation mechanical life and IP65 sealing suit it to repeated daily use in tough environments, and the 22mm mount matches standard industrial cut-outs. Its best-known local application is the push-start ignition button on auto-rickshaws, alongside motor starters, industrial control panels, and operator stations needing a rugged, audibly-confirmed momentary switch.

Specifications

Model
LA-38
Common Market Name
Tik Tik Switch
Mounting Diameter
22mm
Switch Operation
Momentary (Spring Return)
Actuator
Flat Head, Brushed Chrome Bezel
Contact Configuration
1NO + 1NC Modular Terminal Block
Maximum Voltage Rating
440V AC
Maximum Current Rating
10A
Ingress Protection
IP65
Mechanical Lifetime
60,000 Operations
Colour Availability
Red, Green
Housing Design
Transparent Base Assembly with Screw Terminals
Package Includes
1x LA-38 22mm Push Button Assembly (Actuator, Collar, 1NO+1NC Contact Block)
