Connectors

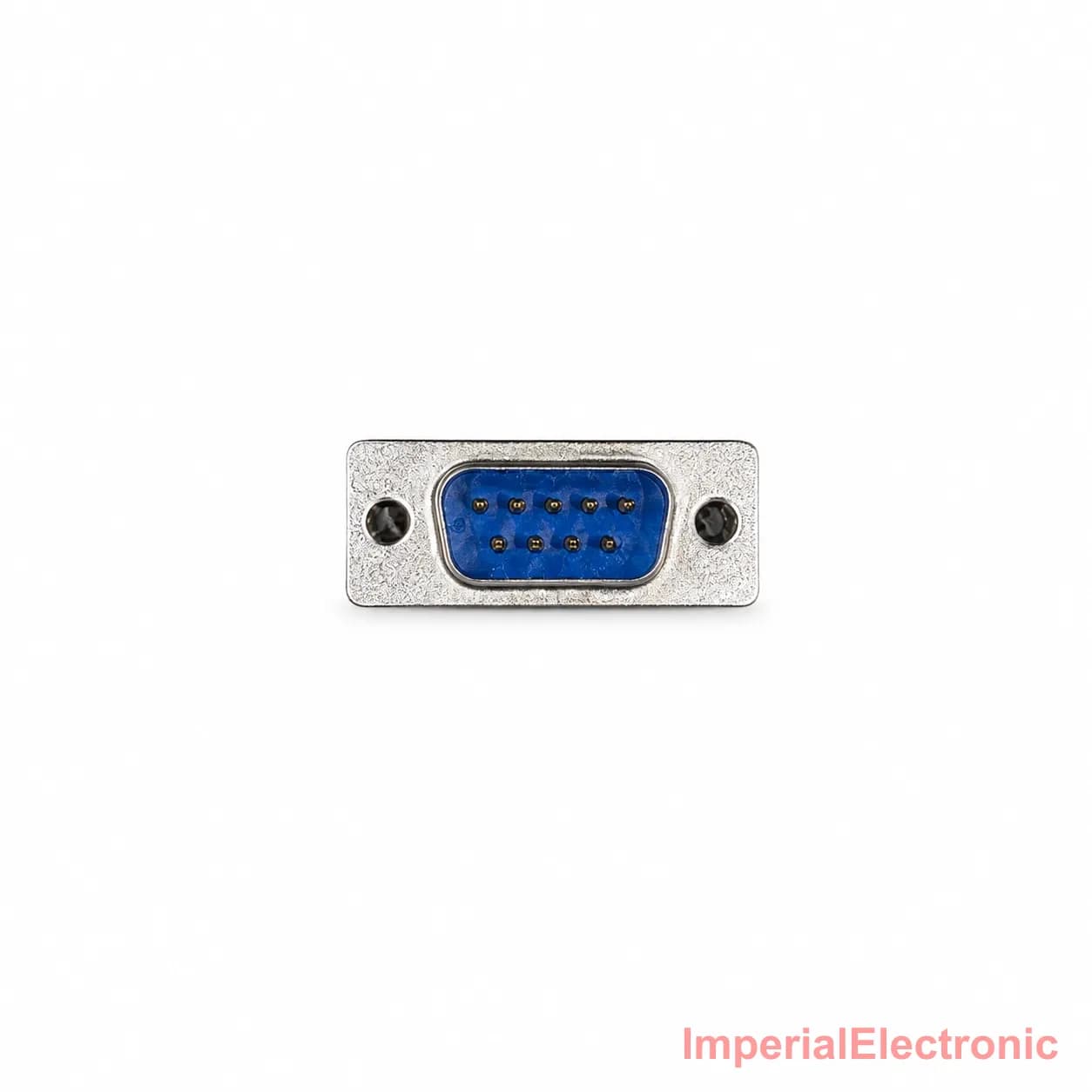

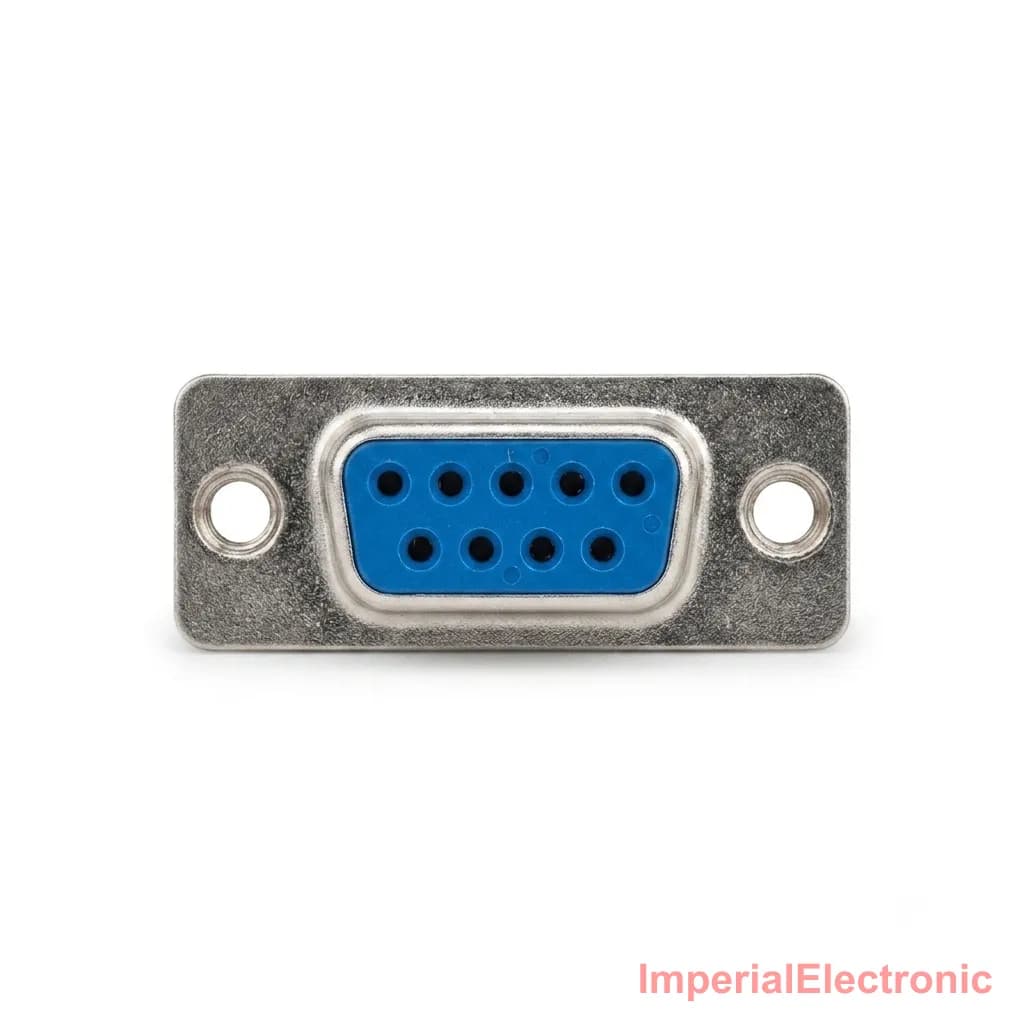

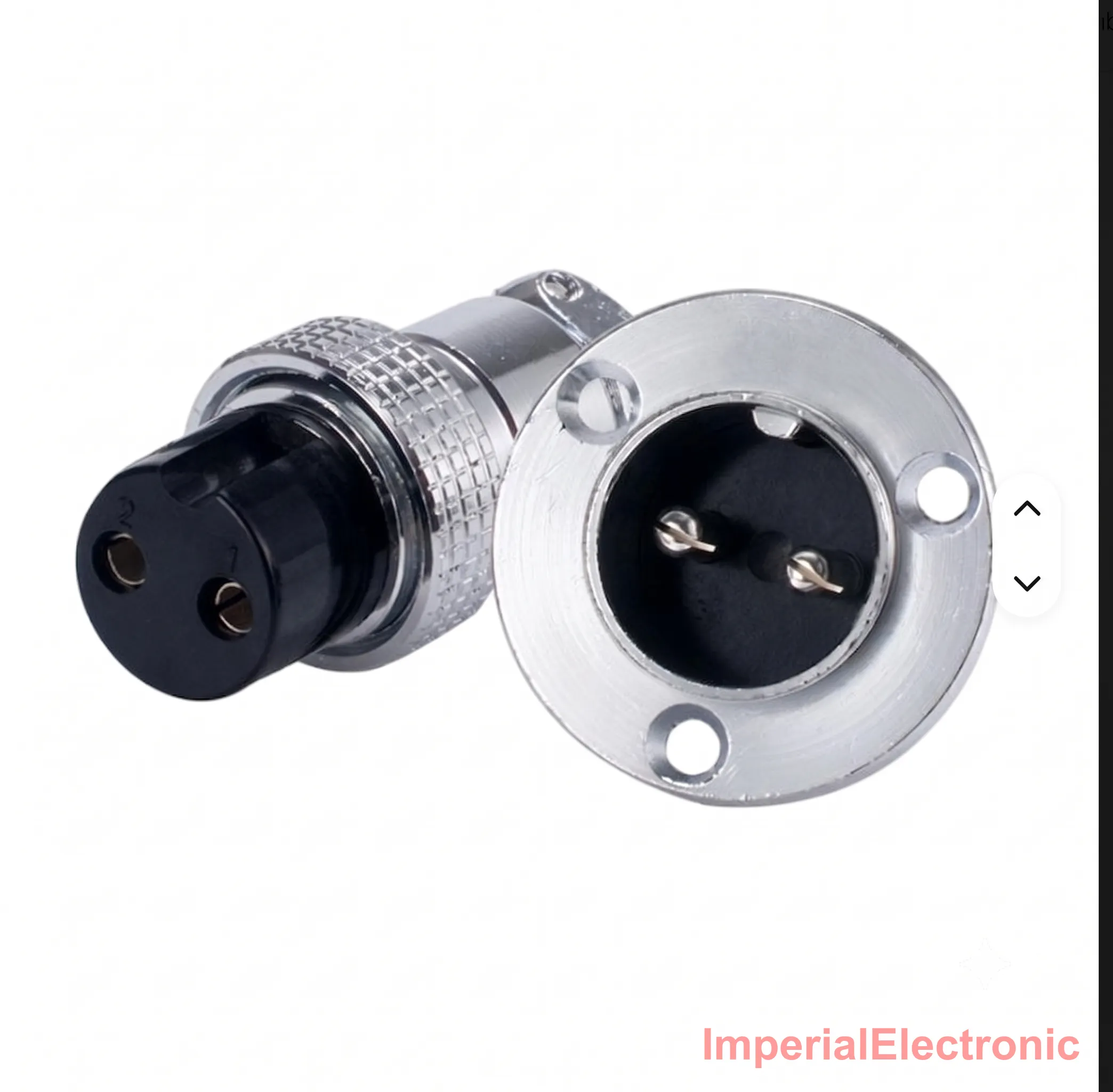

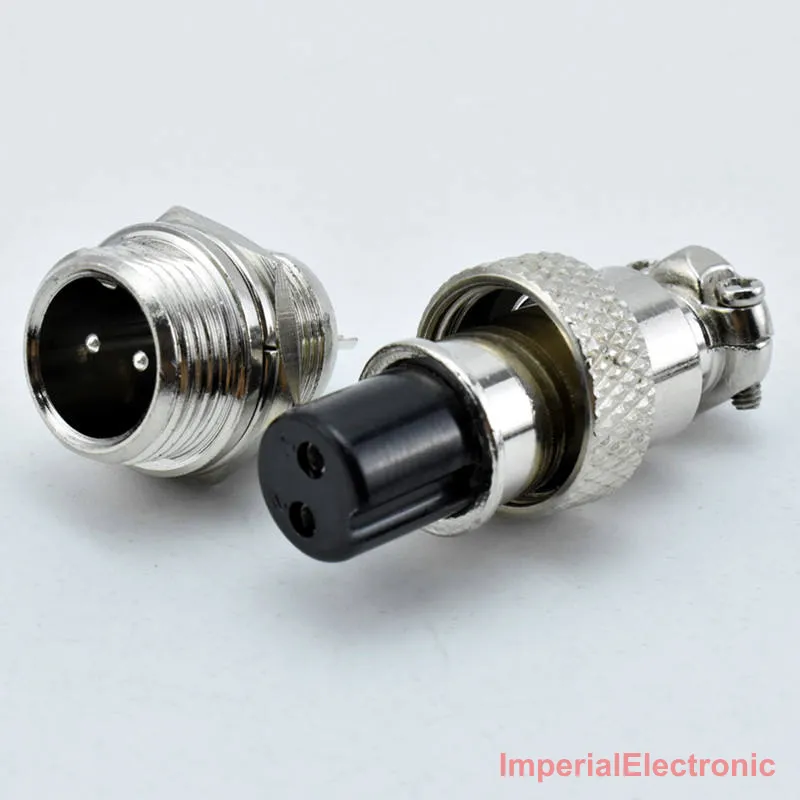

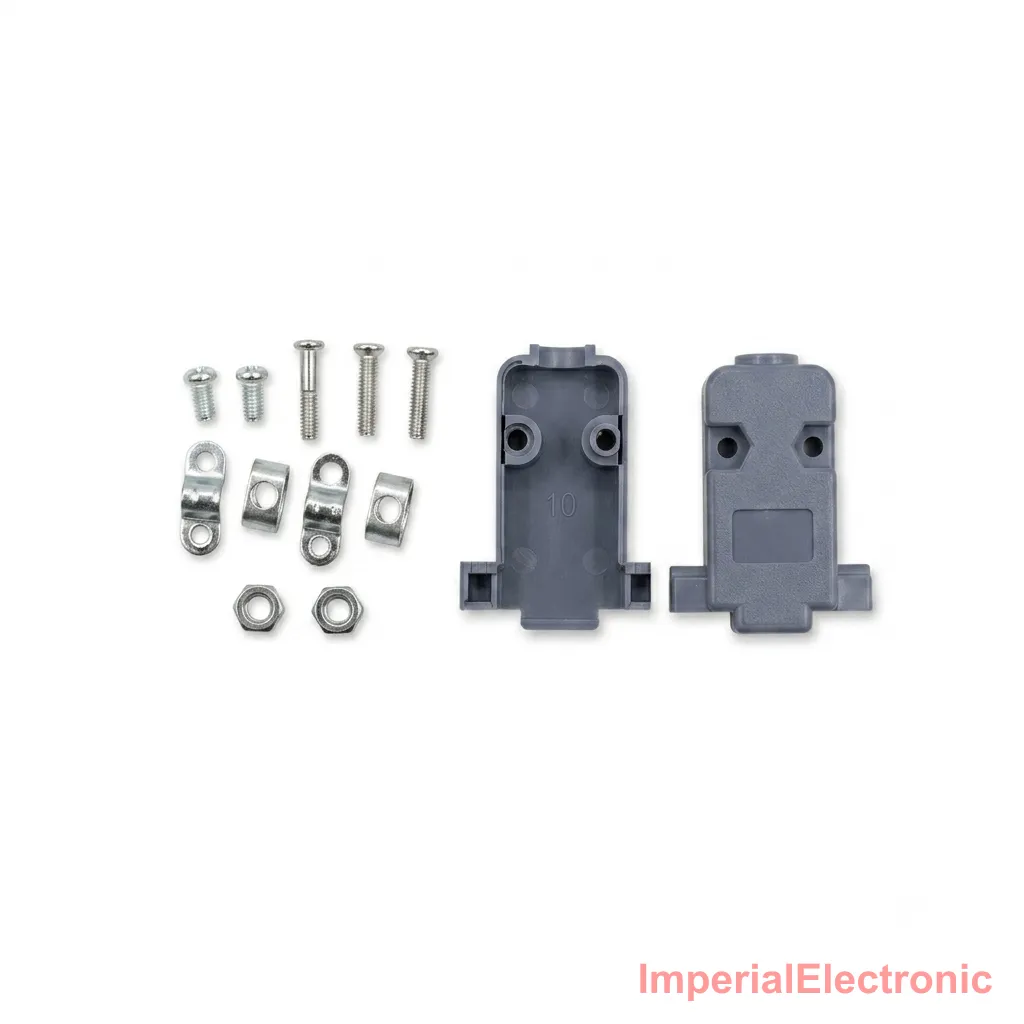

Panel-mount and inline connectors for power and signal wiring — screw-lock aviation metal XLR sets from 12mm to 25mm, plus DB-9 RS232 serial connectors and backshells.

Imperial Electronic supplies connectors for joining power and signal cabling — the fittings that let a cable be unplugged and reconnected without cutting and re-splicing wire. A good connector does three things at once: it holds a low-resistance electrical contact, it takes the mechanical strain so the conductors don't, and it keeps the joint identifiable so the same wire goes back in the same place every time.

Our range is organized by connector family, since the choice usually comes down to how the joint is made and held. Browse a family below to see the full size and pin-count range within it, along with the ratings and materials for each model.

Everything we list is stocked in Lahore for same-day collection and shipped nationwide, in both retail quantities for a single repair and wholesale volumes for panel builders, audio installers, and manufacturers.

Buying Guide

Work through four questions in order and the right connector usually picks itself. First, how much current and voltage does the joint carry — that sets the minimum contact size and rules out the light-duty families straight away. Second, how many conductors, plus at least one spare pin, because adding a wire later means replacing the connector entirely. Third, where does it live: a connector on a machine that vibrates or a cable that gets yanked needs a locking coupling, not a friction fit, and anything exposed to dust or splashing needs an IP rating to match. Fourth, how does it mount — through a drilled panel hole, inline on the cable, or onto a board — since that decides the body style. Measure your panel cut-out before ordering, and remember most sets are sold as a male-and-female pair, so you need one set per break in the cable.
