Generic

KCD-1-104 Kodu Rocker Switch 4-Pin Red Illuminated On/Off (DPDT)

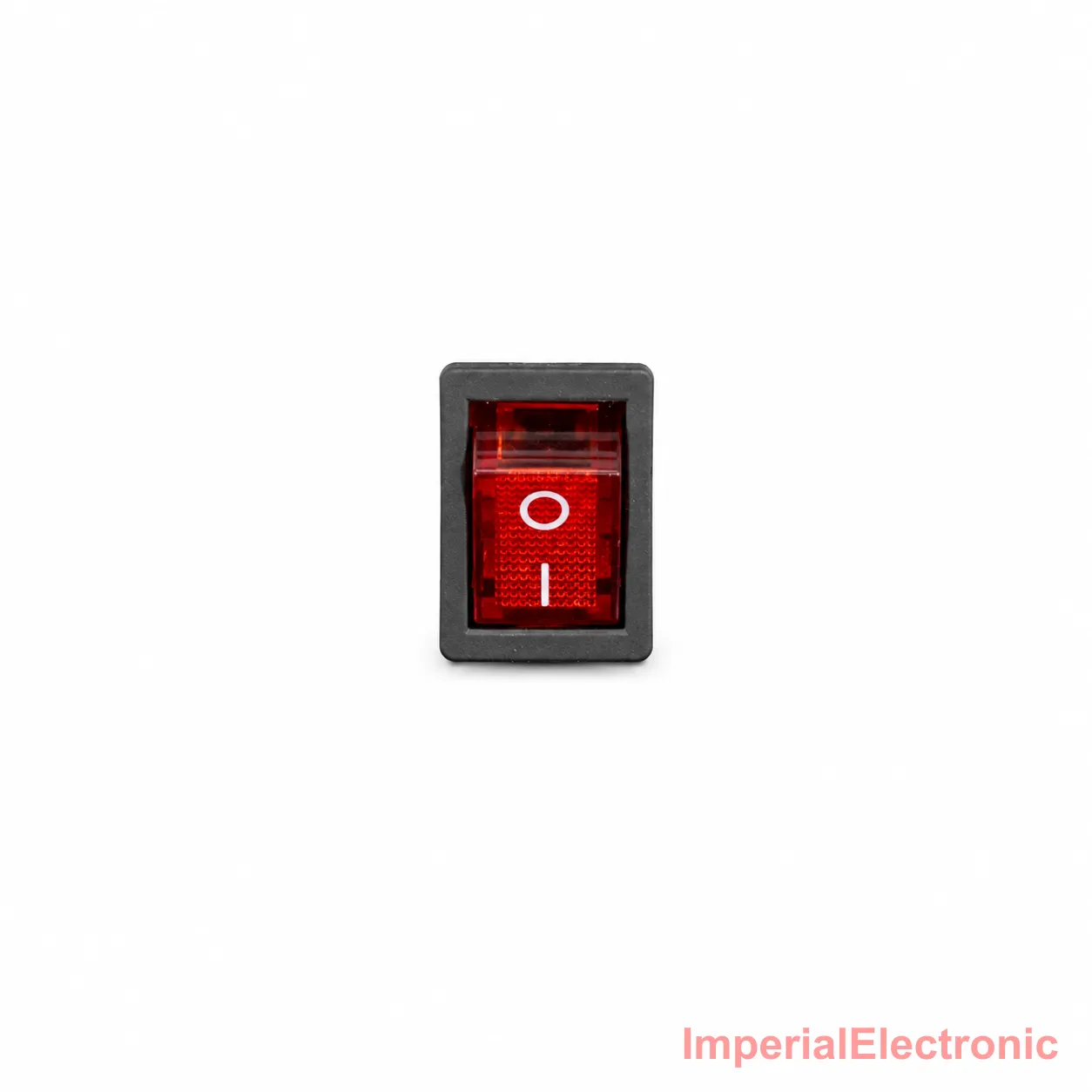

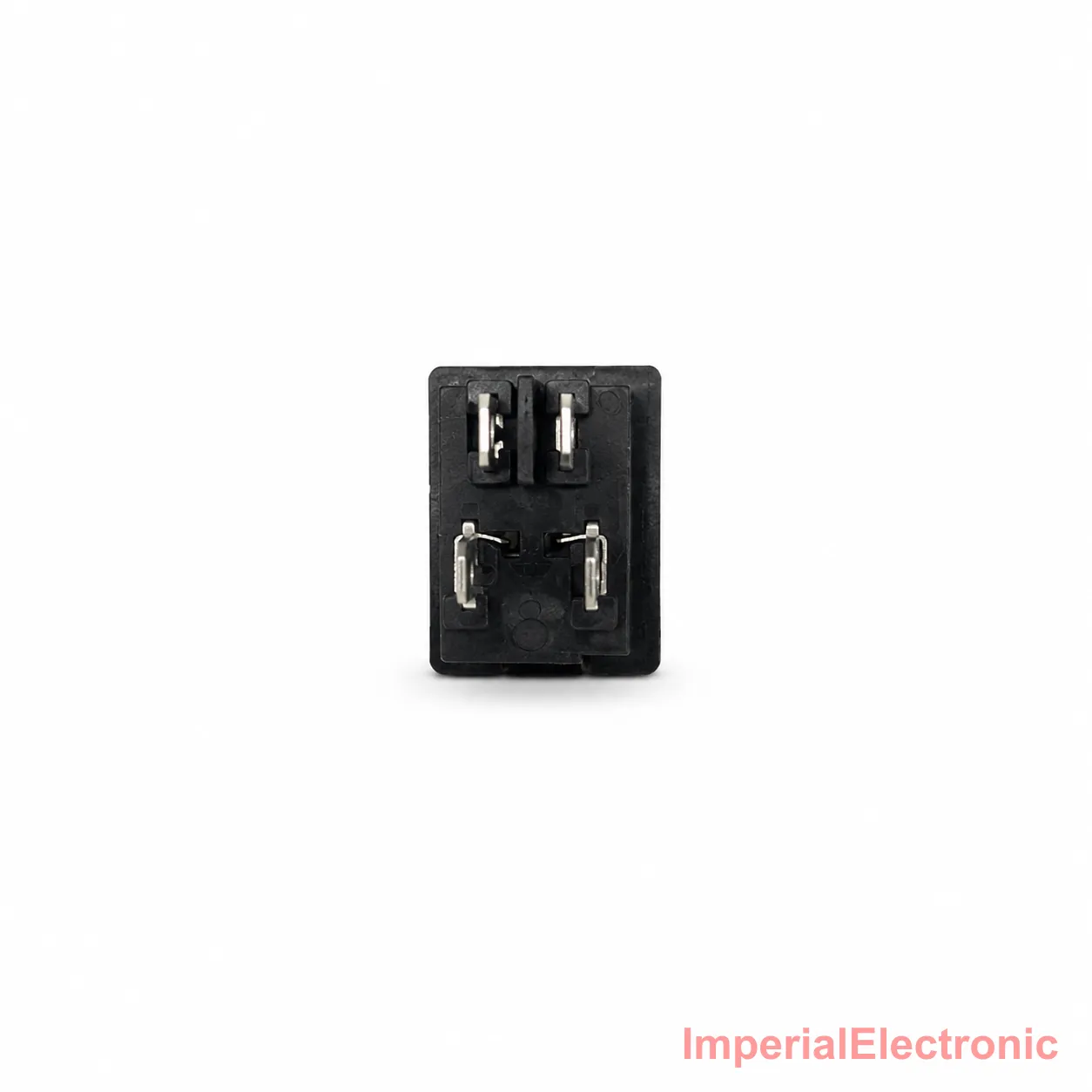

The KCD1-104 is a 4-pin rocker switch with a red illuminated actuator, giving dual-circuit control and a clear visual indication of load status from the same component. The four terminals allow both lines of a supply to be broken together rather than switching a single pole, which is the safer arrangement for mains-fed equipment. Its snap-in body drops into a standard rectangular cut-out tool-free, and the quick-connect tabs accept either spade connectors or a soldered joint. Rated at 6A 250V AC and 10A 125V AC and carrying CQC and CE marks, it suits household appliances and power strips, desktop power supply units and test benches, industrial automation panels and power distribution modules, and custom automotive and marine circuits.
