Generic

KCD-1 Round Rocker Switch 3-Pin On/Off/On Centre Off (SPDT)

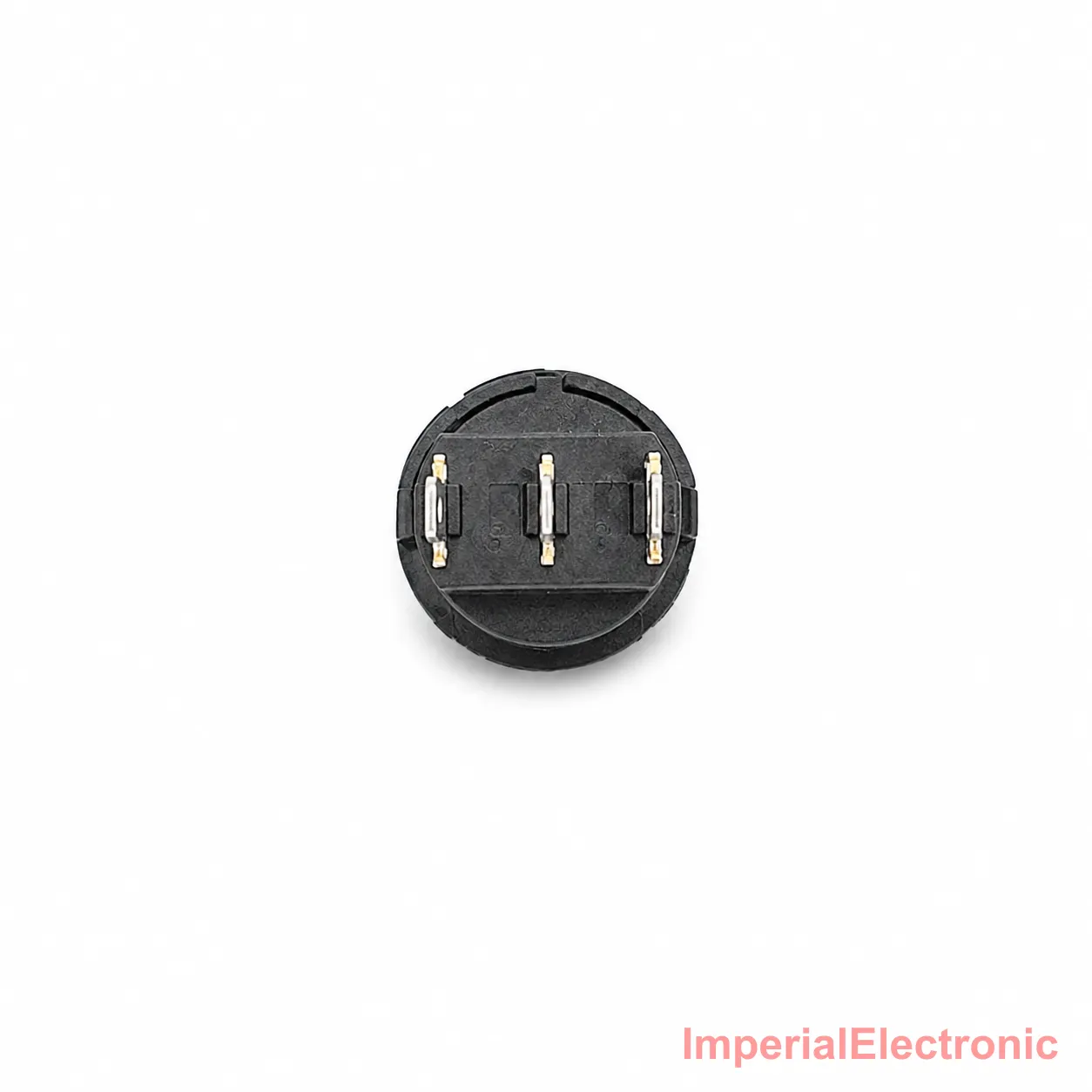

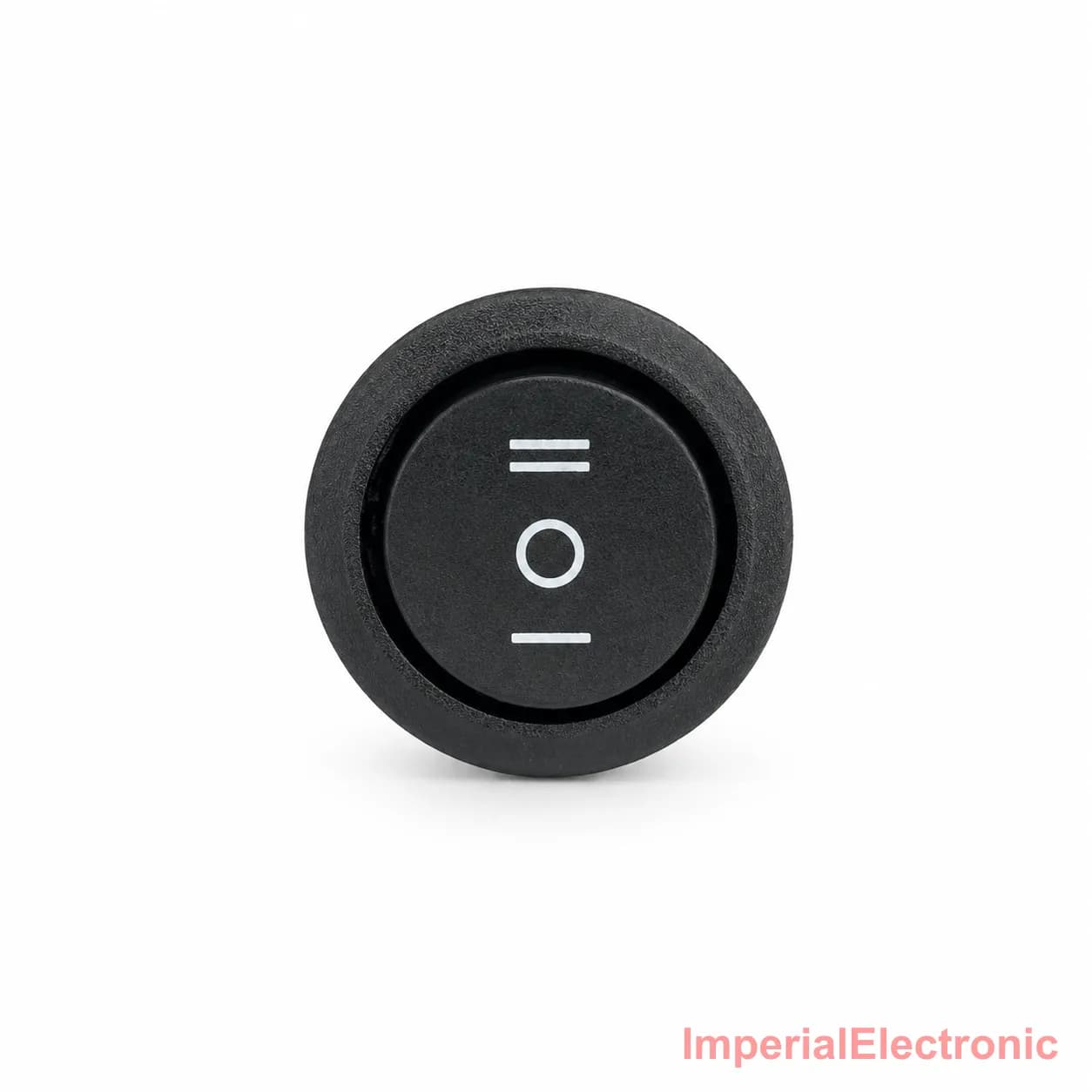

This KCD1 round rocker adds a centre-off position to the three-pin body, giving ON — OFF — ON operation from a single control. That middle detent is what makes it useful: it provides a genuine neutral state between two live selections, which is exactly what motor direction control and dual-source switching need. The three positions are marked I, O, and II on the housing alongside the 20A 125V AC / 6A 250V AC rating, and the switch snaps into a round cut-out on integrated retention clips. Typical applications include forward–stop–reverse motor control in robotics and DIY builds, dual power source selection between a battery and an AC adaptor for embedded systems, high–off–low accessory switching in automotive and marine panels, and general use in custom control panels and power distribution boxes.
