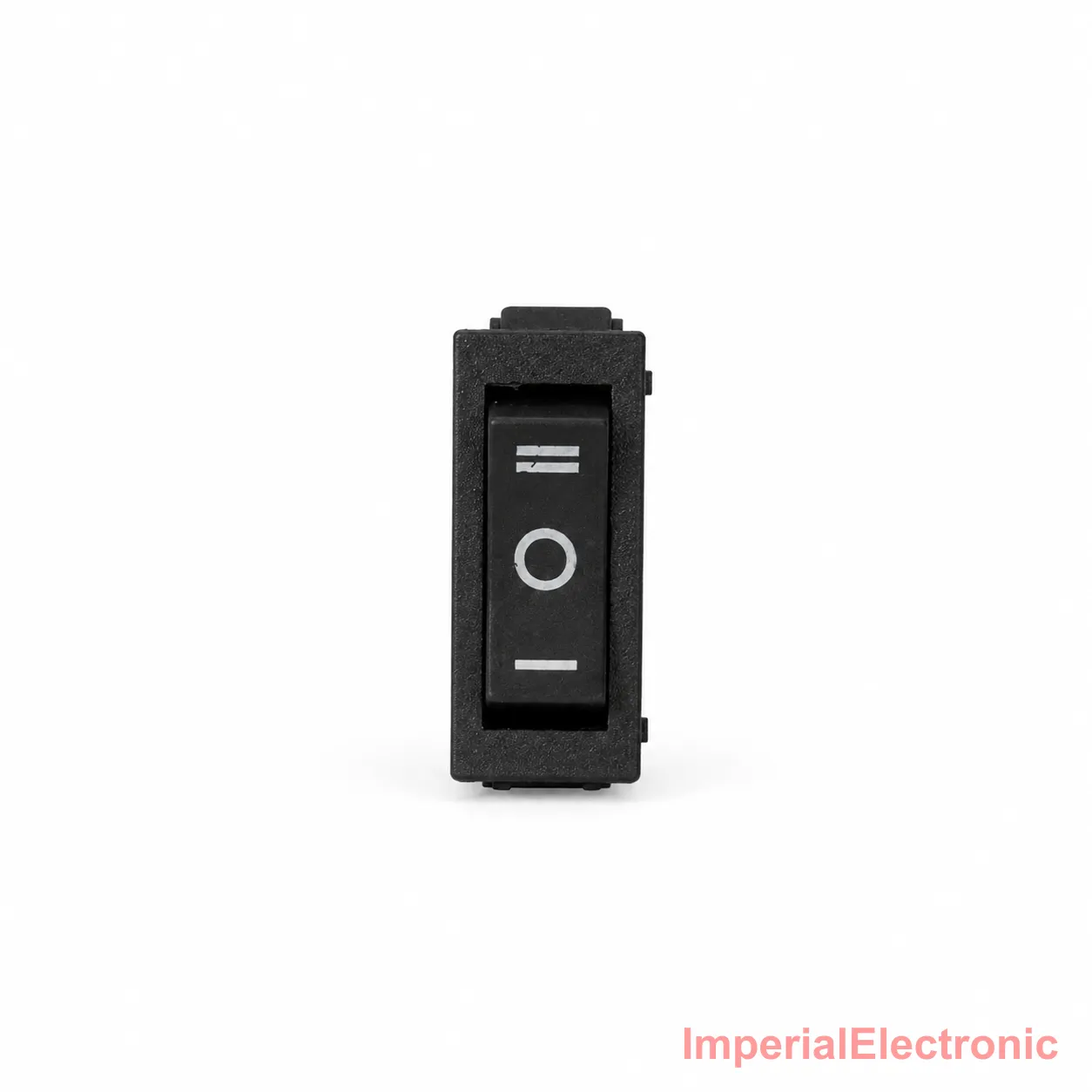

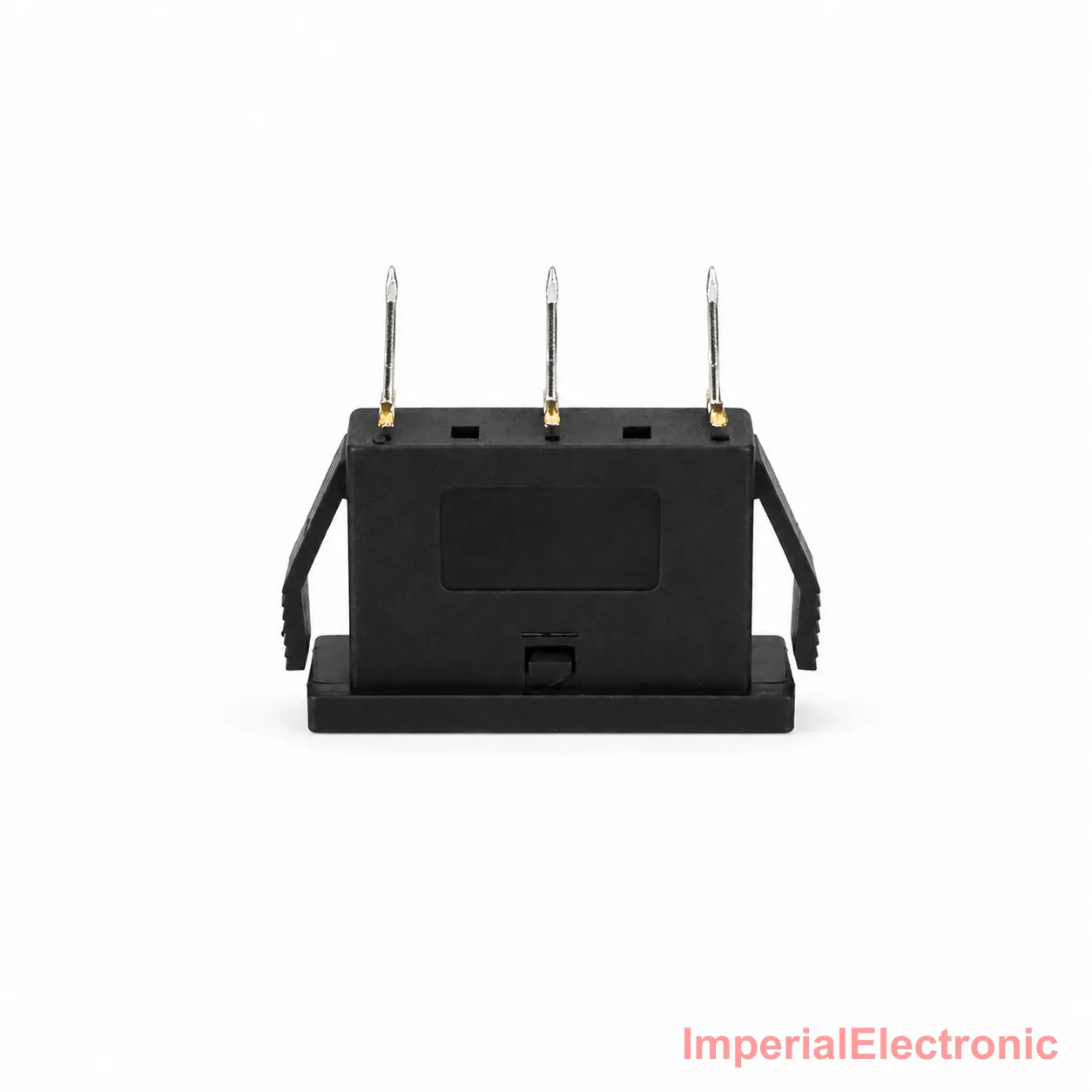

KCD3-102 Rocker Switch 3-Pin On/Off/On Centre Off

The KCD3-102 is a robust 3-pin panel-mount rocker switch with a three-position centre-off mechanism for reliable power and circuit direction control. Built with a durable black plastic housing, high-conductivity copper contacts, and nickel-plated terminals, it delivers a mechanical life of up to 50,000 cycles while holding contact resistance to 50 mΩ or less and insulation resistance above 1000 MΩ. It is well suited to a wide range of electrical work, from household appliances, audio/visual equipment, and medical devices through to heavy-duty industrial machinery. Designed to perform safely under high electrical loads, it is also widely used across Pakistan in local manufacturing and assembly — notably in commercial-grade heat guns and custom power control units.
