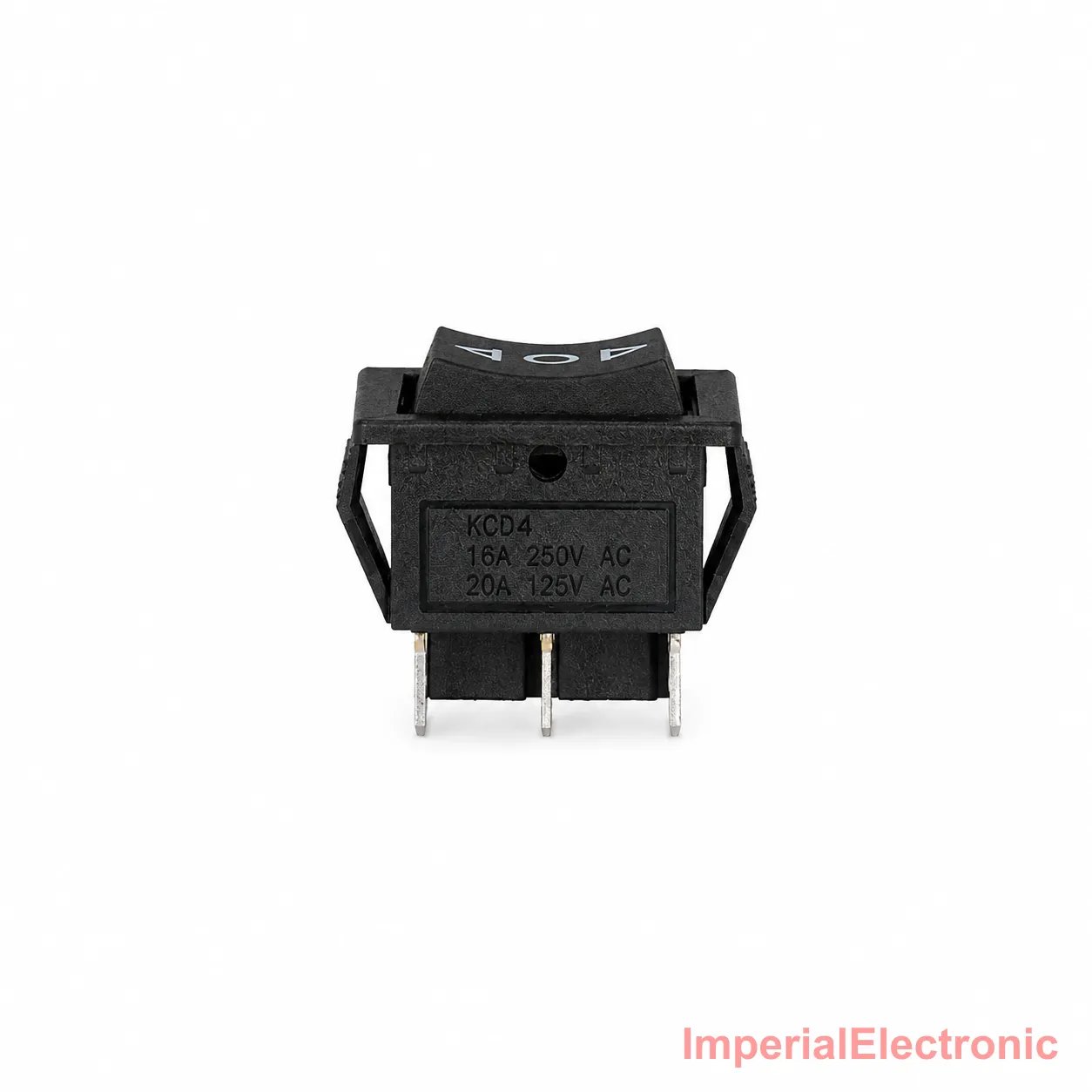

KCD-4 Rocker Switch 6-Pin Double Reset Momentary (DPDT)

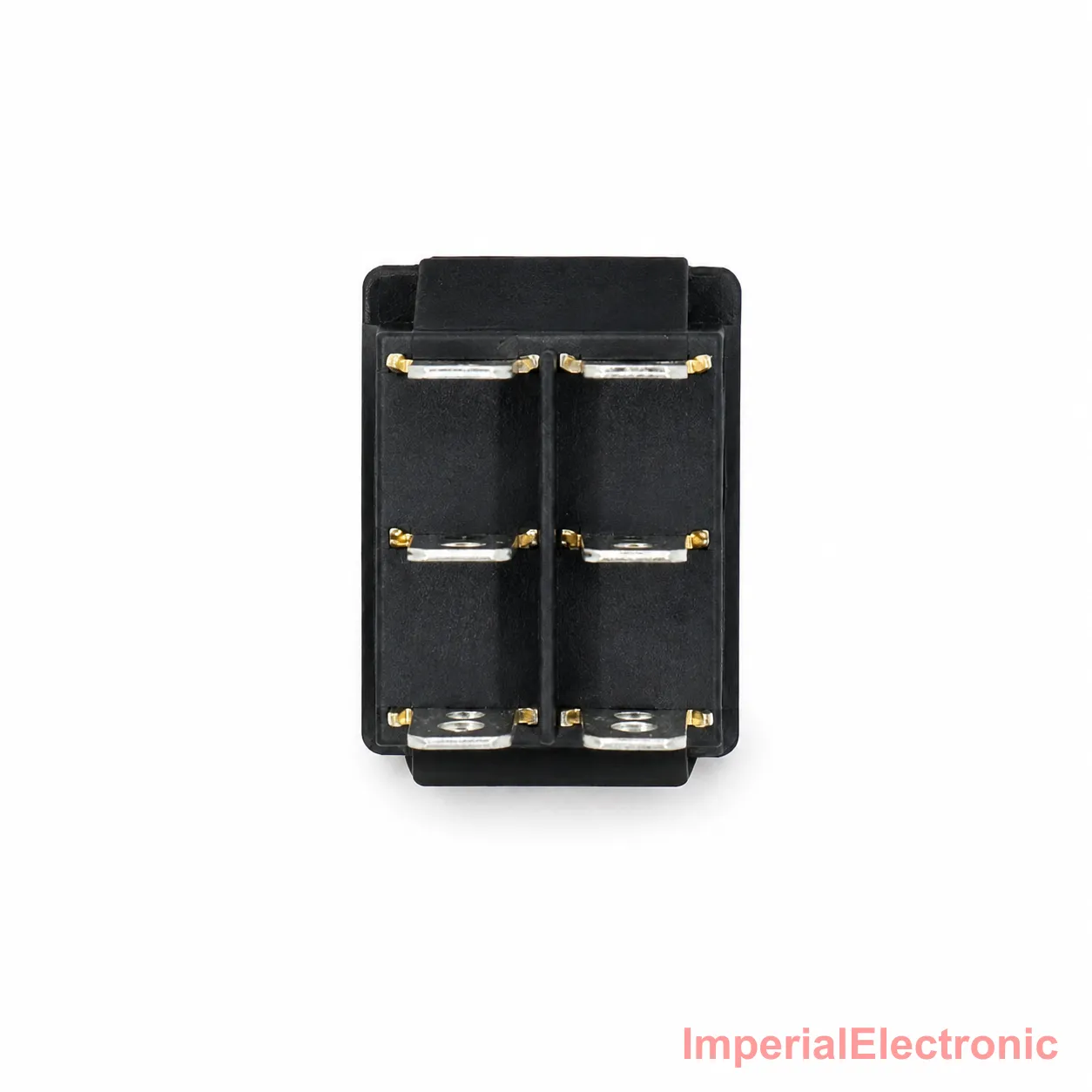

This KCD-4 is spring-loaded on both sides: press either way and it makes contact, release and it snaps back to the central OFF position. That (ON)–OFF–(ON) action is what jog control needs — the motor runs only while the operator holds the switch, and stops the instant they let go, which is a safety property rather than a convenience. Six terminals give full DPDT changeover for polarity reversal at 16A 250V AC or 20A 125V AC, and directional arrows on the actuator make the two live directions clear. It is the standard control for motor forward/reverse switching, actuator, winch, and hoist systems, automotive power window and seat modifications, and industrial automation and robotics.
