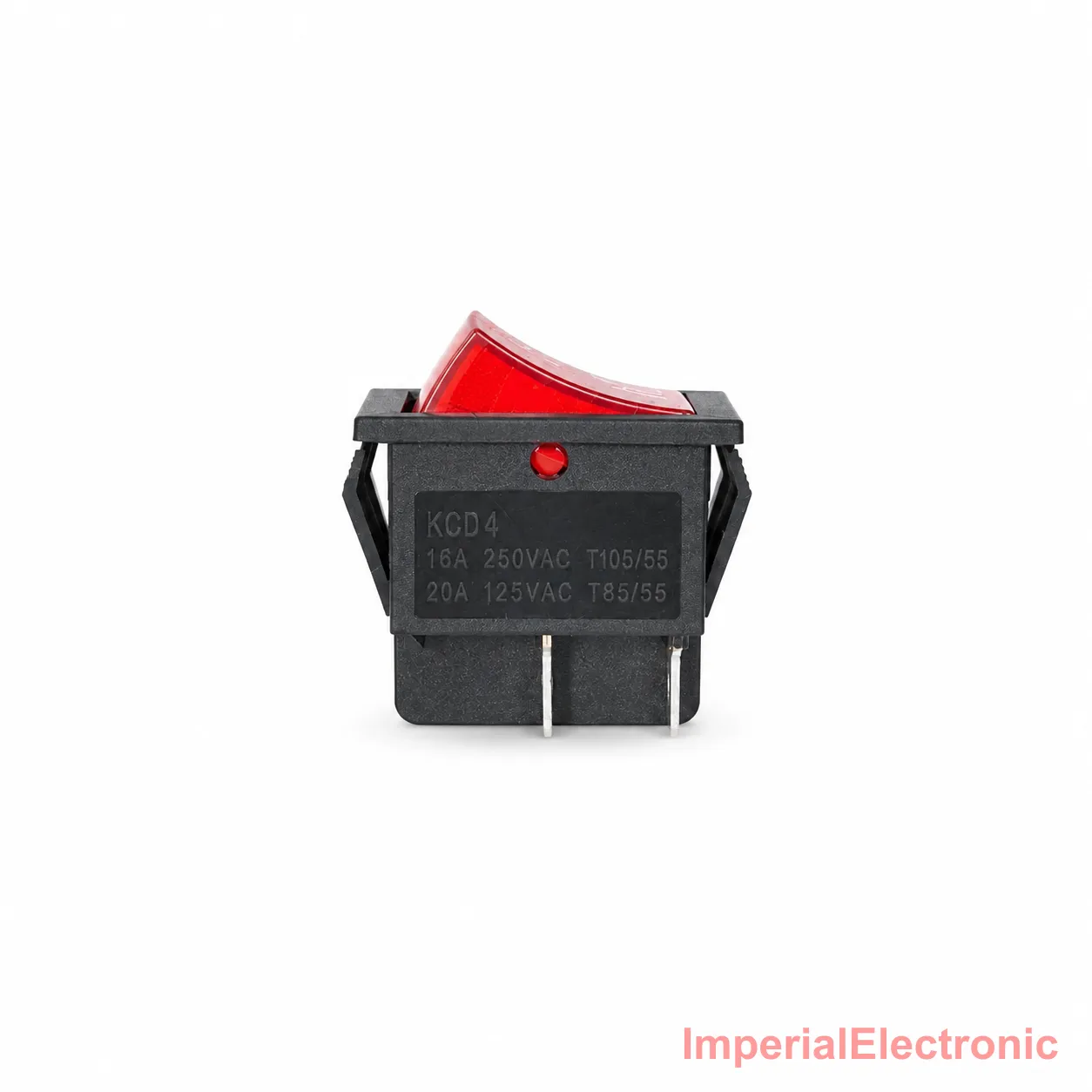

KCD-4 Rocker Switch 4-Pin On/Off Red Illuminated (DPST)
This KCD-4 pairs double-pole switching with a red translucent actuator lit by an integrated lamp, so both supply lines are broken together and the panel shows plainly whether the equipment is live. The flame-retardant housing snaps into a standard rectangular cut-out and the four quick-connect terminals handle 16A at 250V AC or 20A at 125V AC. It is the default choice wherever a mains appliance needs an obvious, serviceable power control — water dispensers, coffee makers, and power strips, desktop power supply units and DIY electronics, industrial control panels and electrical enclosures, and power integration on robotics and CNC machinery.
Specifications
- Model
- KCD-4
- Switch Type
- DPST (Double Pole Single Throw) Rocker Switch
- Pin Count

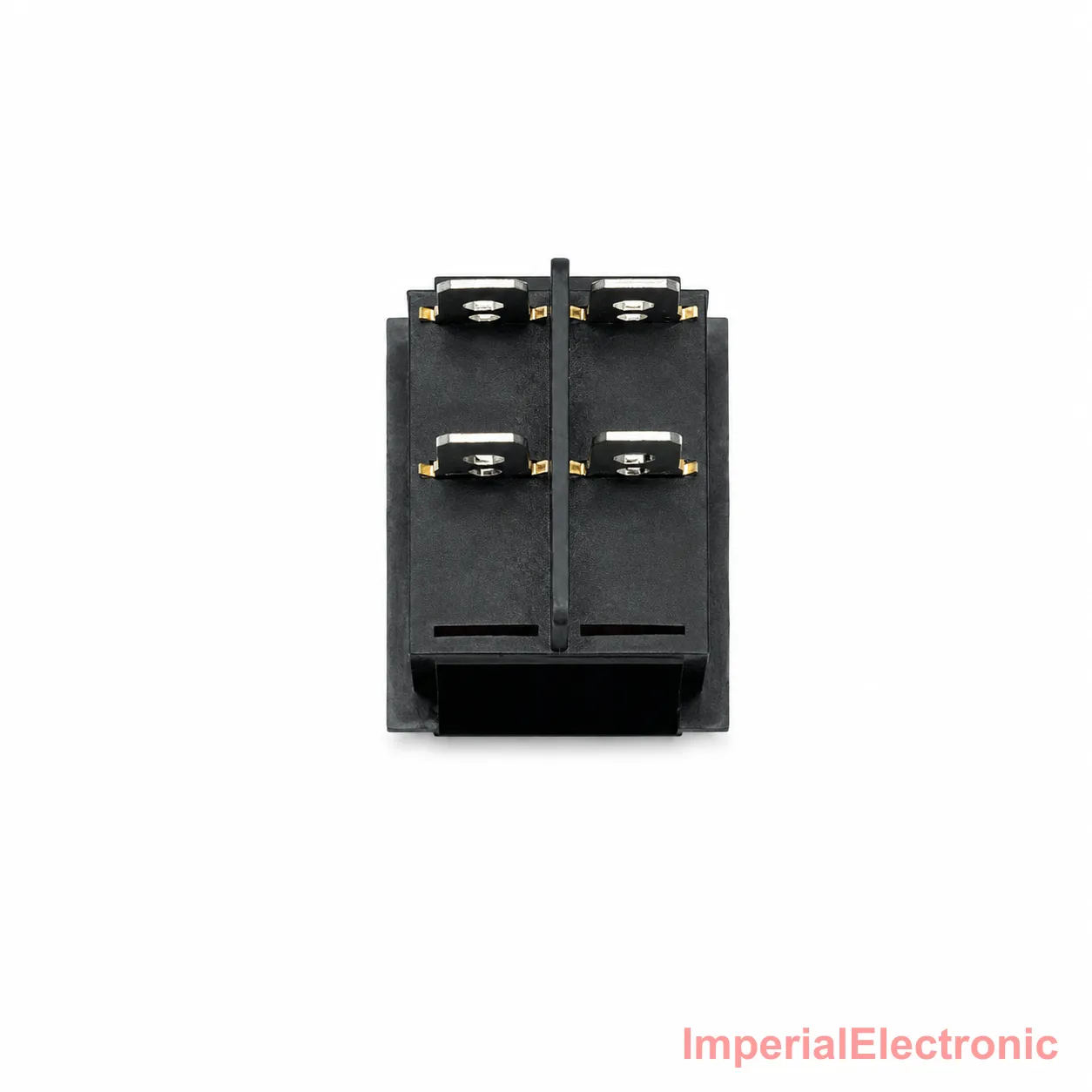

- 4 Terminals (2-Line Input, 2-Line Output / Illumination Support)
- Illumination
- Red Translucent Actuator with Integrated Indicator Lamp
- Actuator Markings
- Standard "I / O" International Power Symbols
- Mounting Type
- Snap-In Panel Mount
- Rated Voltage / Current
- 16A 250V AC / 20A 125V AC
- Housing Material
- Flame-Retardant Durable Plastic
- Package Includes
- 1x KCD-4 4-Pin Illuminated Red Rocker Switch
